Restaurant Table Tracker Table Tracker Kit

Restaurant Table Tracker - Table Locator

Restaurant Table Tracker is table locator to identify where guests are sitting so you can deliver food faster.

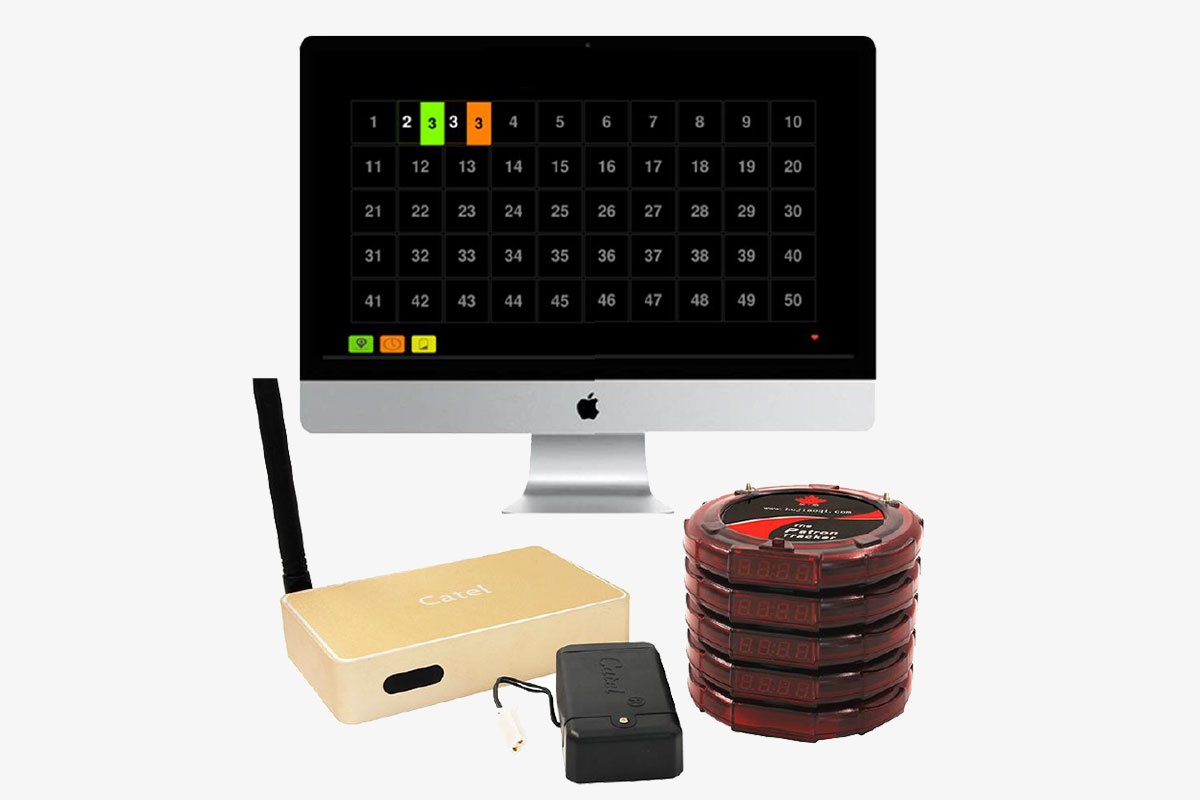

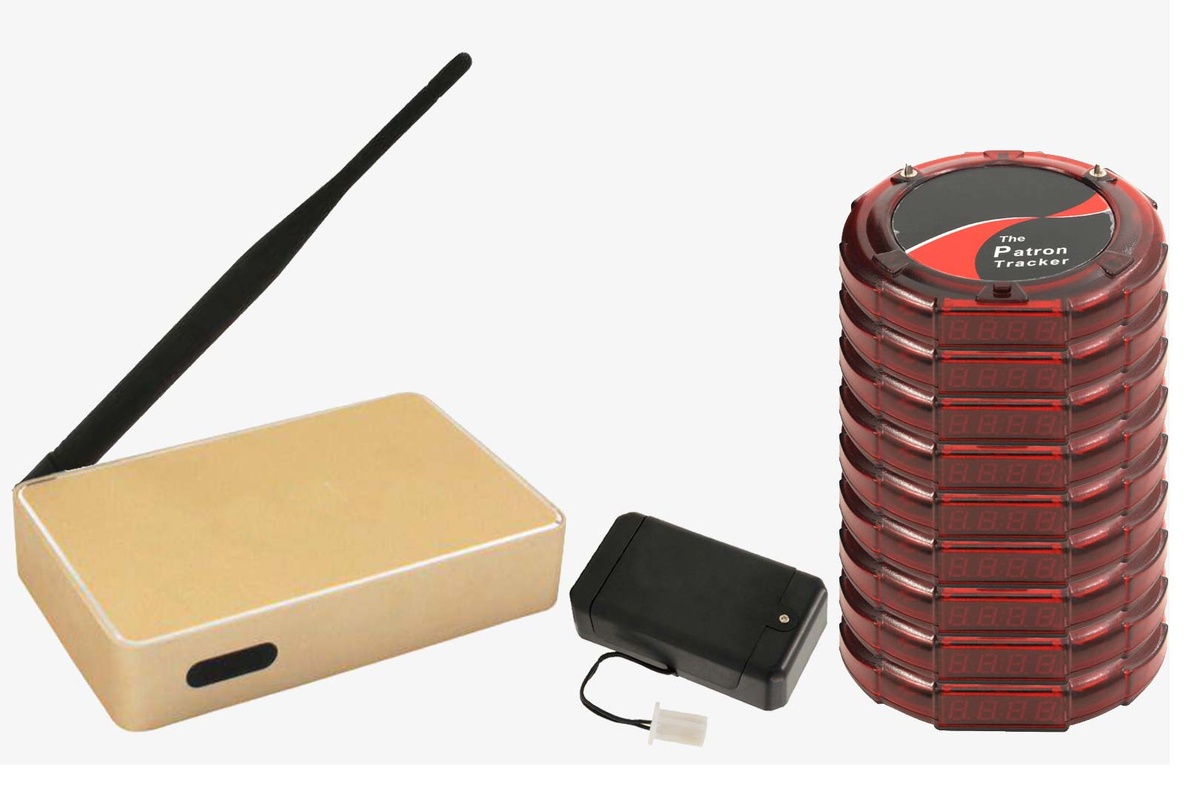

Basic components include Set-top Box, Table Tags, Tracker and Charging Base.

How does the Table Tracker System work?

1. After placing an order, the cashier hands the customer a Table Tracker with an assigned number.

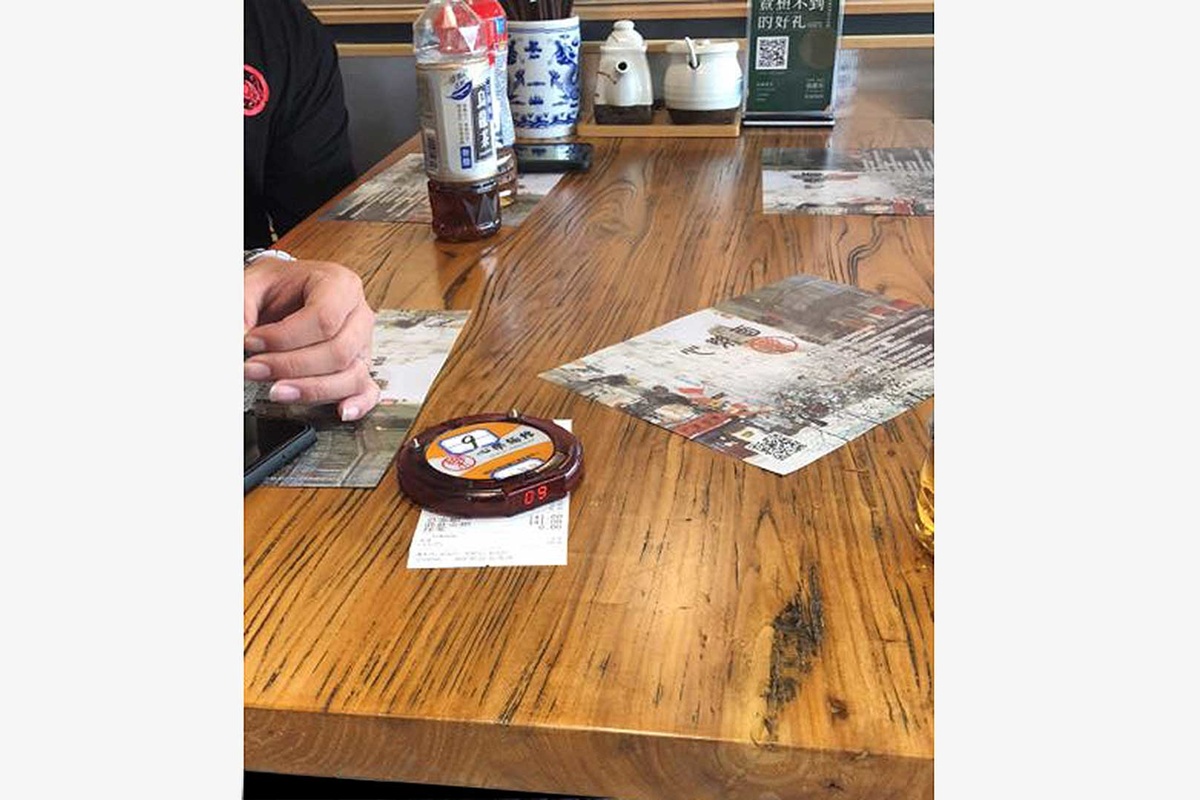

2. Your customer selects a desired seat and places the Table Tracker on the table. The tracker reads the table tag number and sends signal.
3. When the order is ready, the runner no longer needs to search the restaurant for the correct table. Now, the runner simply check the LCD monitor to find the table at which the order was made. The order is quickly delivered with no unnecessary time wasting and your customer receives the food fact and still hot.
4. The runner then returns the Table Tracker.

Table Tracker System are stored on the charger stacked on top of each other (up to 10 pieces).

Full Table Tracker Kit specification

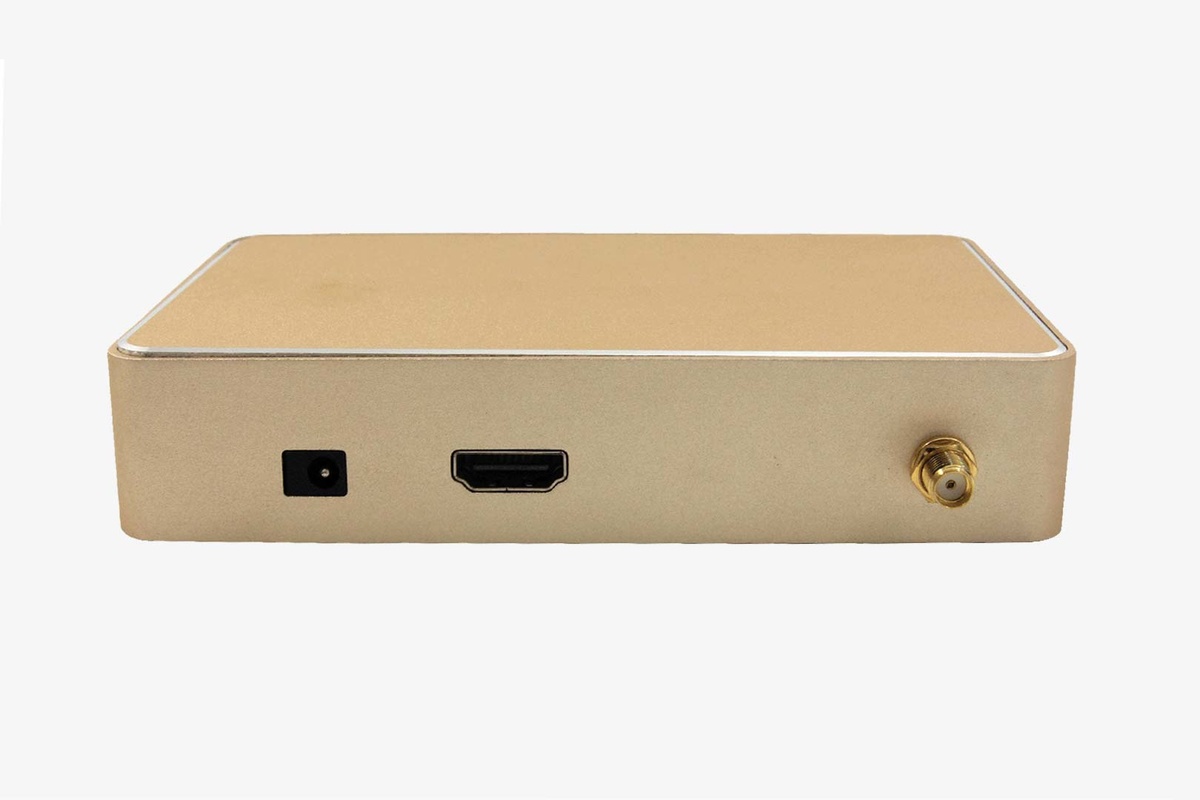

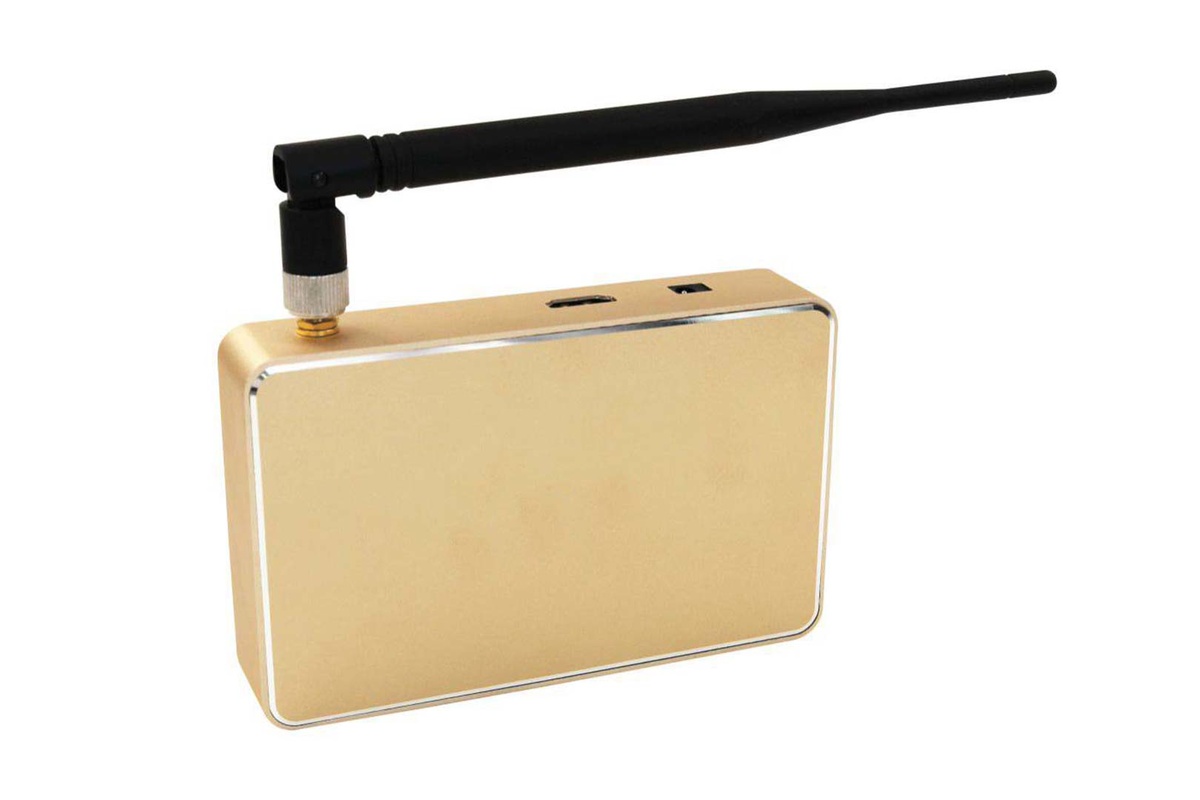

Set-top Box

• Size: 132x82x62 mm
• Display: 4 digits
• Power supply: 5V
• Frequency: 433.92 MHZ
• Antenna length: 208 mm
• Color: rose gold

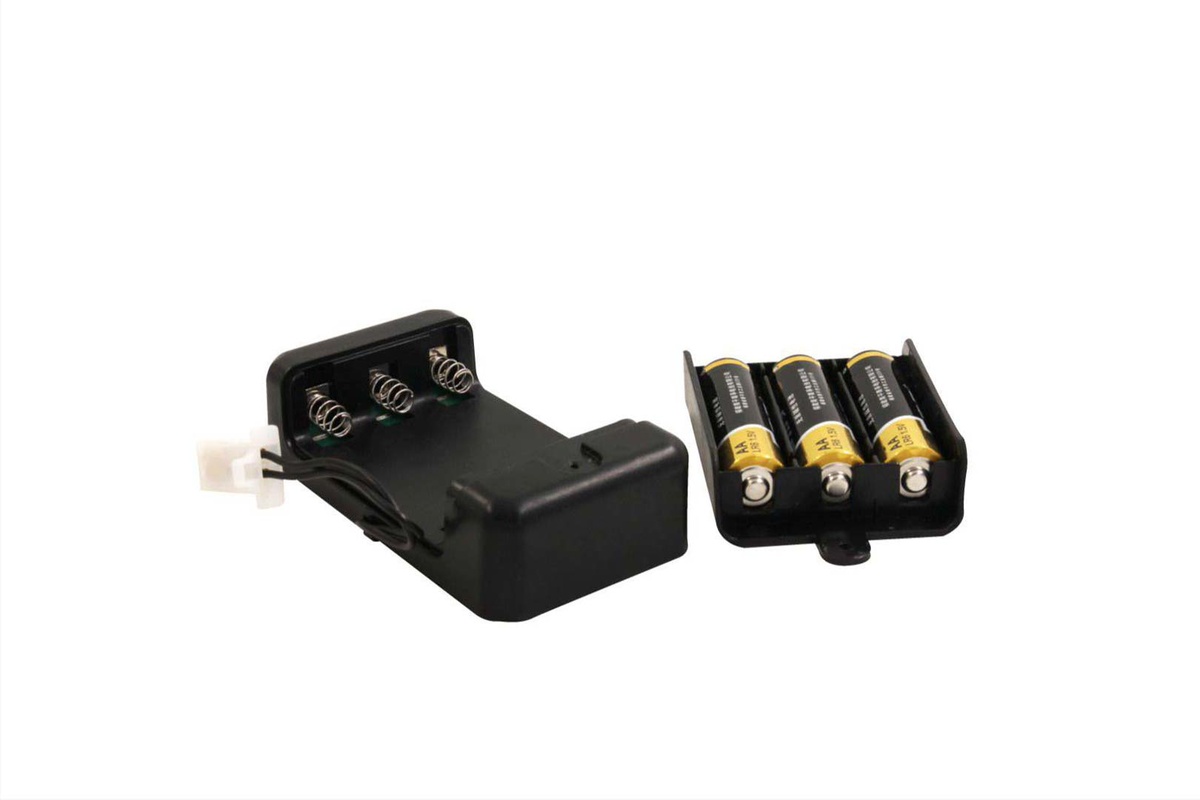

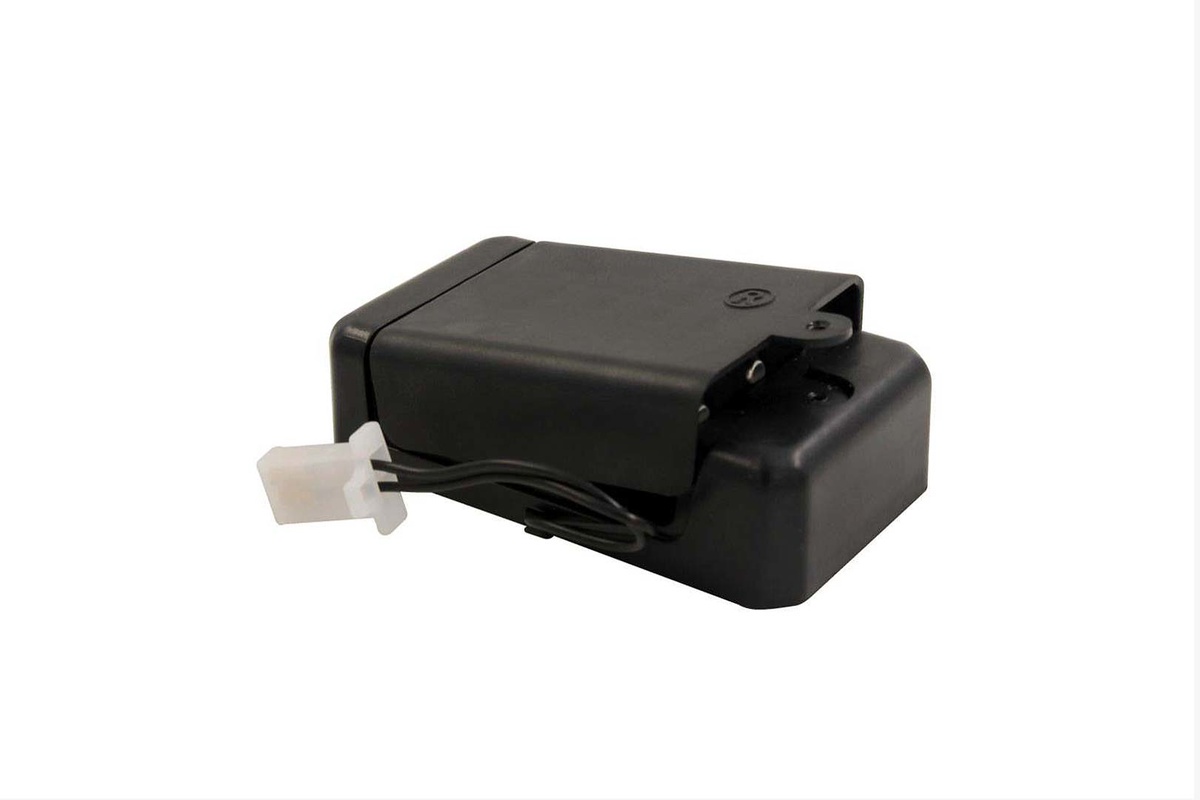

Table Tags

• Size: 88x50x24 mm
• Battery: 5 AA x 3 pcs (2 years battery life)
• Color: black
• Additional lines are included

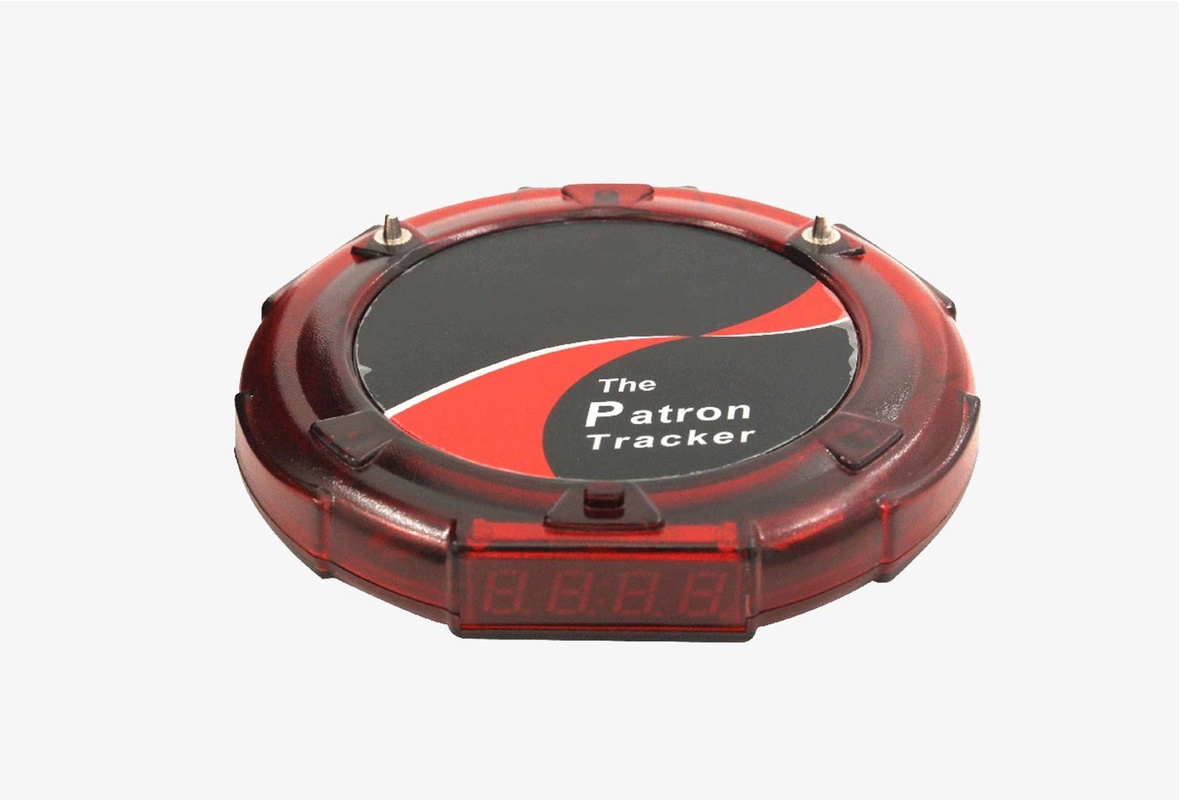

Tracker

• Size: 103x103x15.6 mm
• Power: Built-in 3.7 V lithium battery
• Power supply: 7.5V / 12V
• Frequency: 433.92 MHZ
• Color: red
• Material: ABS-plastic

Charging Base

• Size: 103x103x15.6 mm
• Color: red
• Material: ABS-plastic
• Notes: Each charger base could maximally support 10 pcs of trackers
