Wireless call button for disabled RC-11 + R-300 + R-02

In stock
  • Number of ringing tones: 52 melodies;
  • ASK modulation, 10 mW power;
  • Volume: 4 levels, from 0 to 110 dB;
  • Working temperature range: from -30 to + 70 ° С;
  • Removable strap included.

Wireless calling system RECS RC-11 + R-300 + R-02 for disabled people is a comprehensive, convenient, reliable and professional solution for communication between patients and service personnel. The system does not require additional installation costs, has a high degree of water resistance IP55 and a wide range of operating temperatures from -30 to + 70 ° С, which allows it to work correctly outdoors, in a building, and in rooms with high humidity. The kit is very easy to install and configure, does not require additional wires to connect. Compact, stylish and reliable.

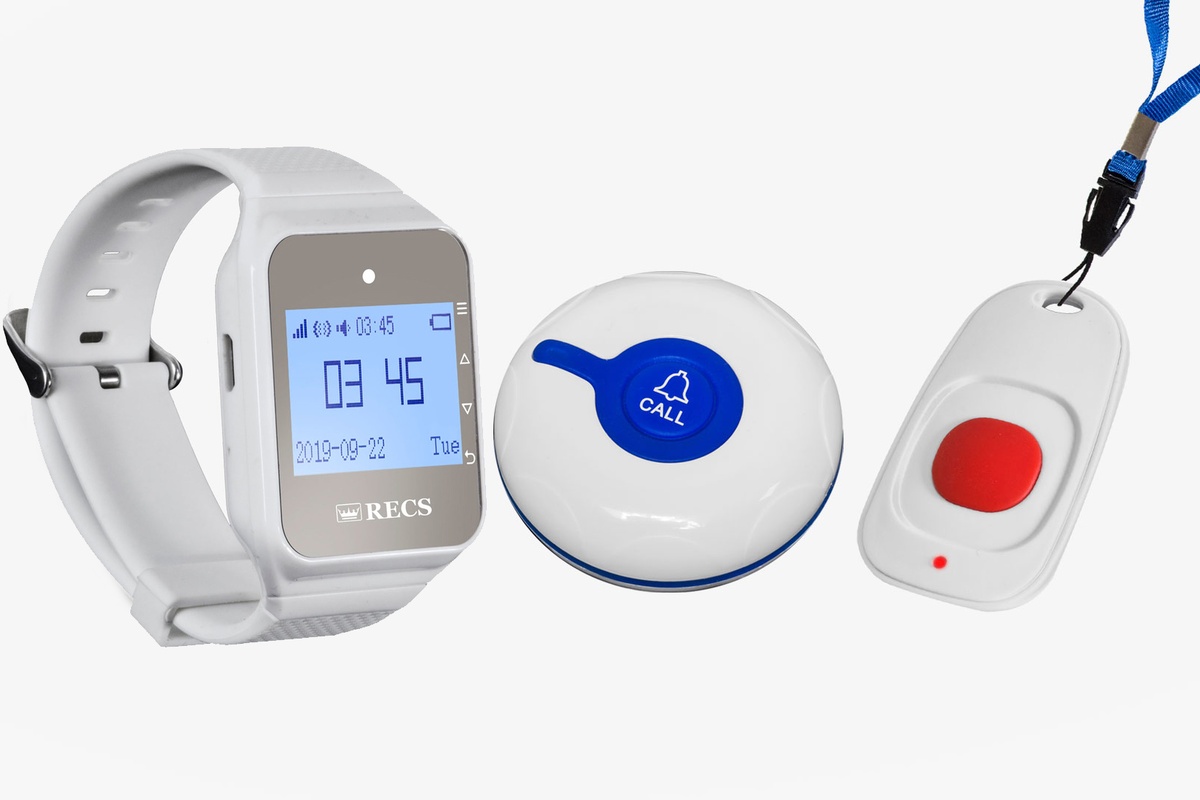

The RECS RC-11 + R-300 + R-02 call system consists of lightweight rectangular call button on a lace, a small round R-300 call button and a pager watches R-02. The wrist pager watches duplicates the reception of the call signal: the signal goes to the common receiver in the personnel room and to the pager of the particular responsible employee at the same time. The range of the receiver reaches up to 100 meters from the call button and the pager.

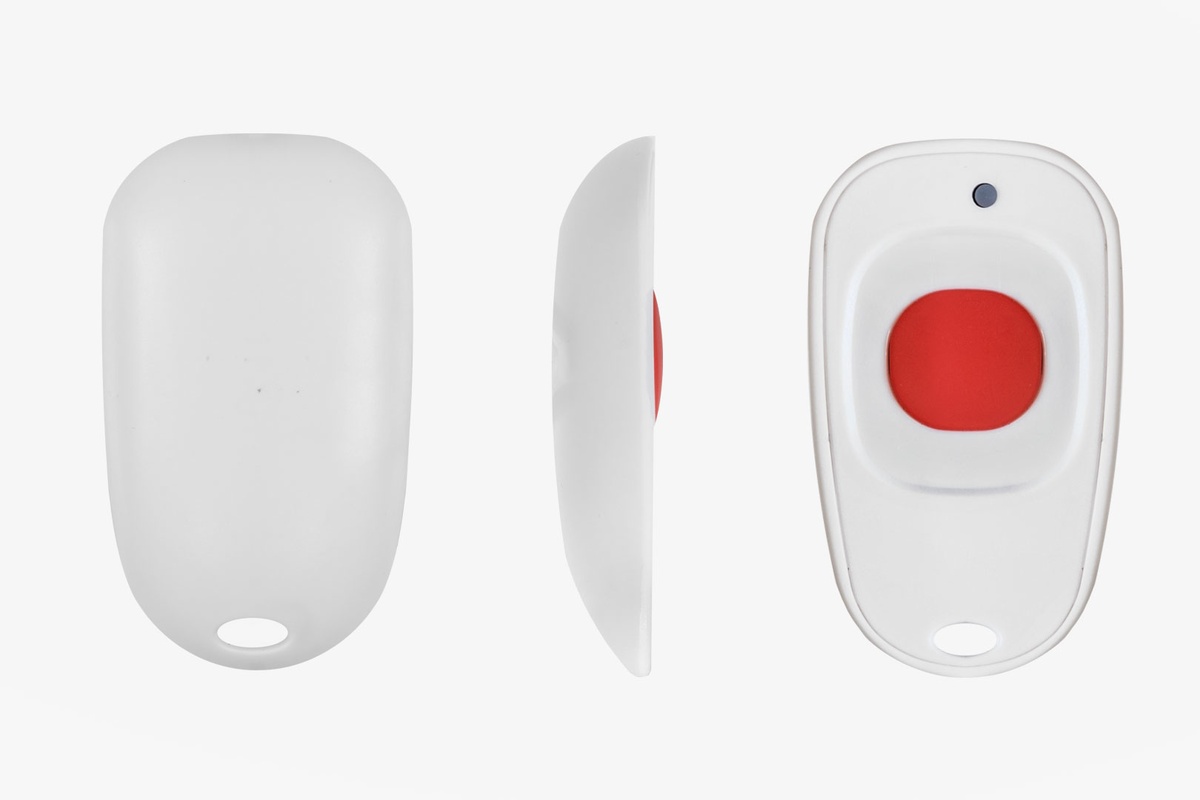

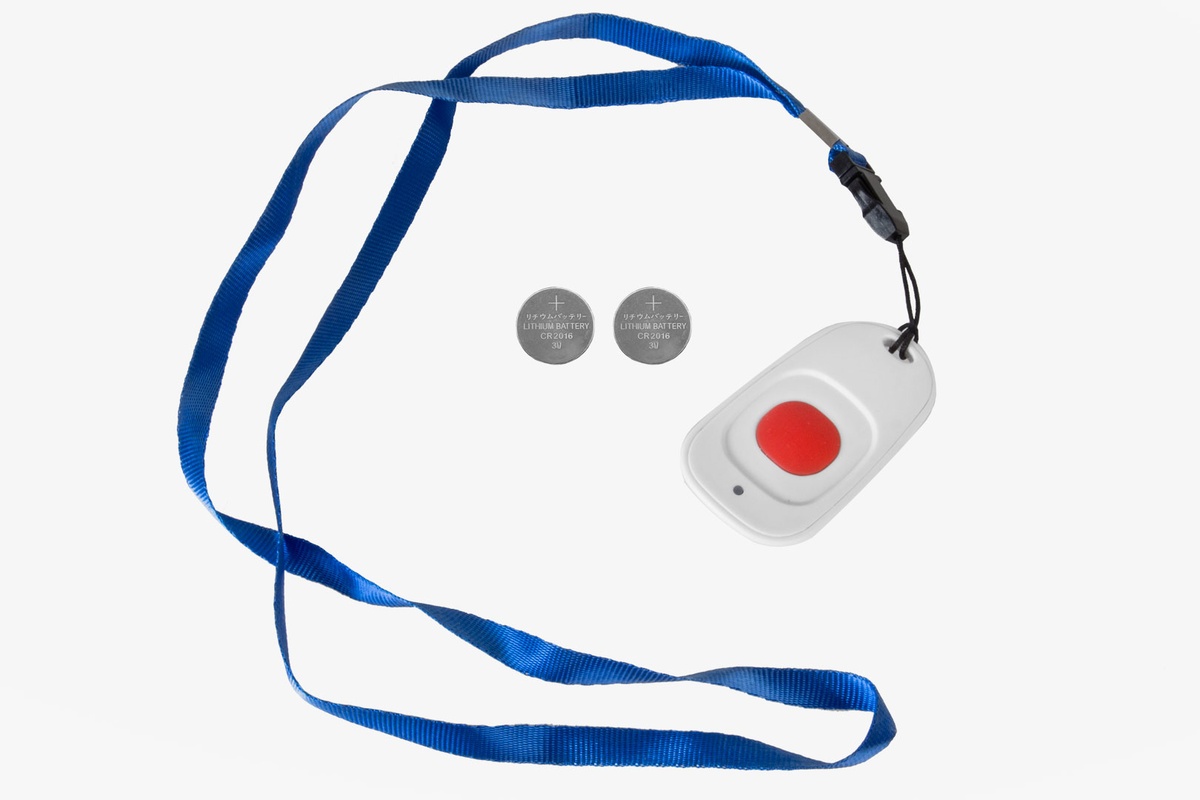

The call button RC-11 is completely sealed, it works on a two CR2016 batteries. It is designed for comfortable, long wearing on the neck of the patient, with the help of a lace with a plastic latch.

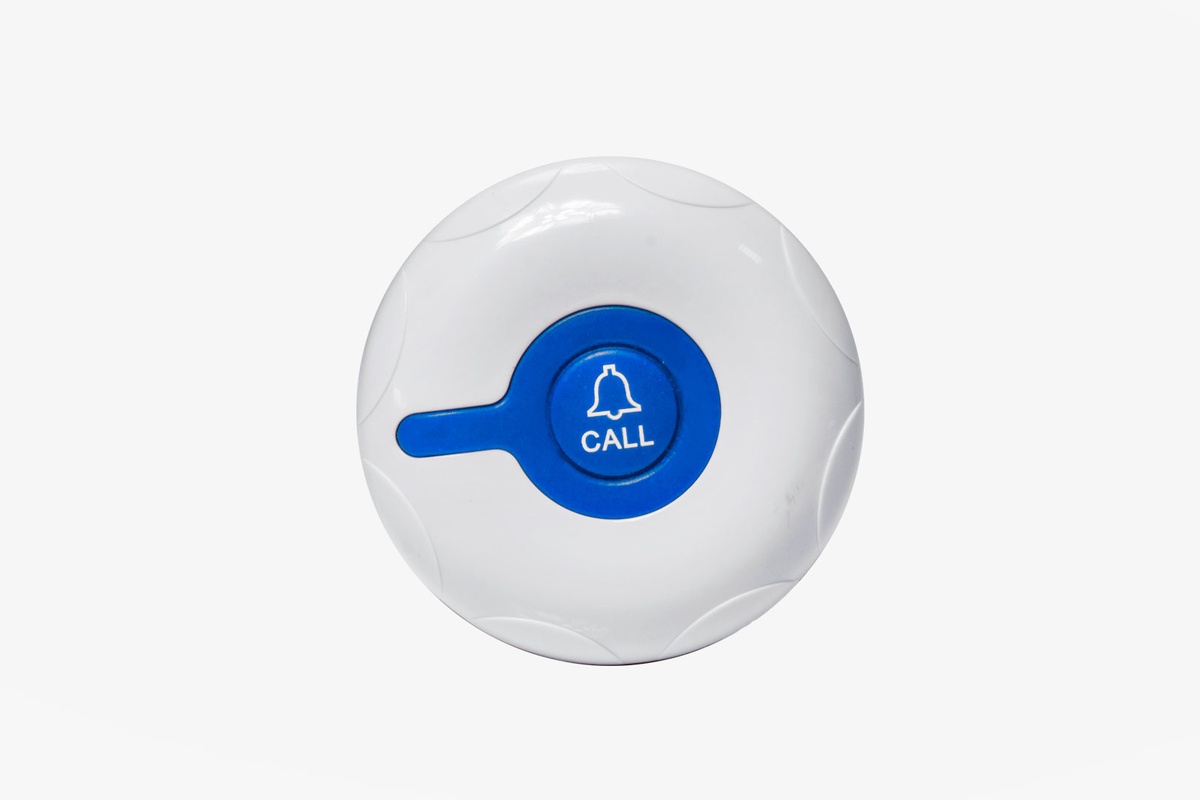

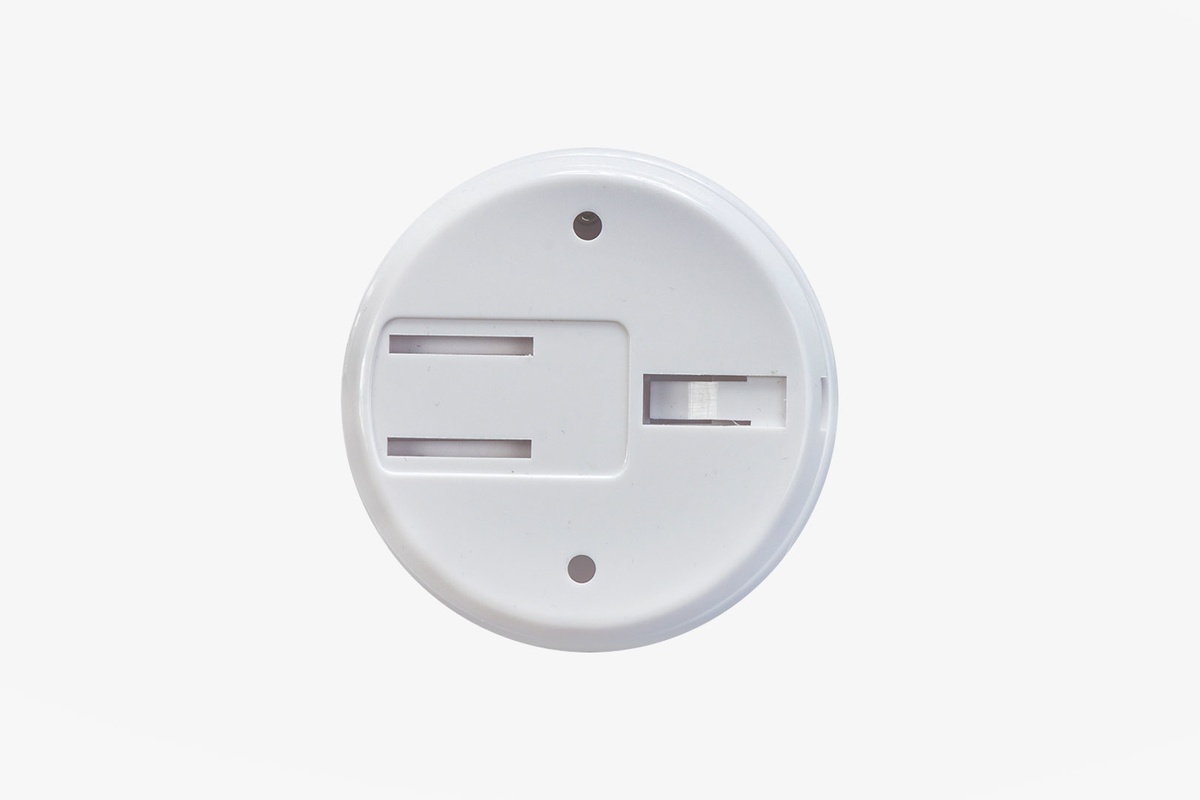

The R-300 RECS button is pleasant to touch and convenient to use, especially for sedentary and weak patients. The button with a radius of 60 mm and a height of 20 mm is easy to take into the hand, and the soft non-slip surface of the button makes it easy to press it even to a person with a lack of coordination. A bright red or blue button on a white background of the body is clearly visible to visually impaired people. The body is made of special shockproof glossy ABC plastic with an internal rubber gasket, sealed electronic button and a built-in indicator. Protection class against water and dust is IP-68.

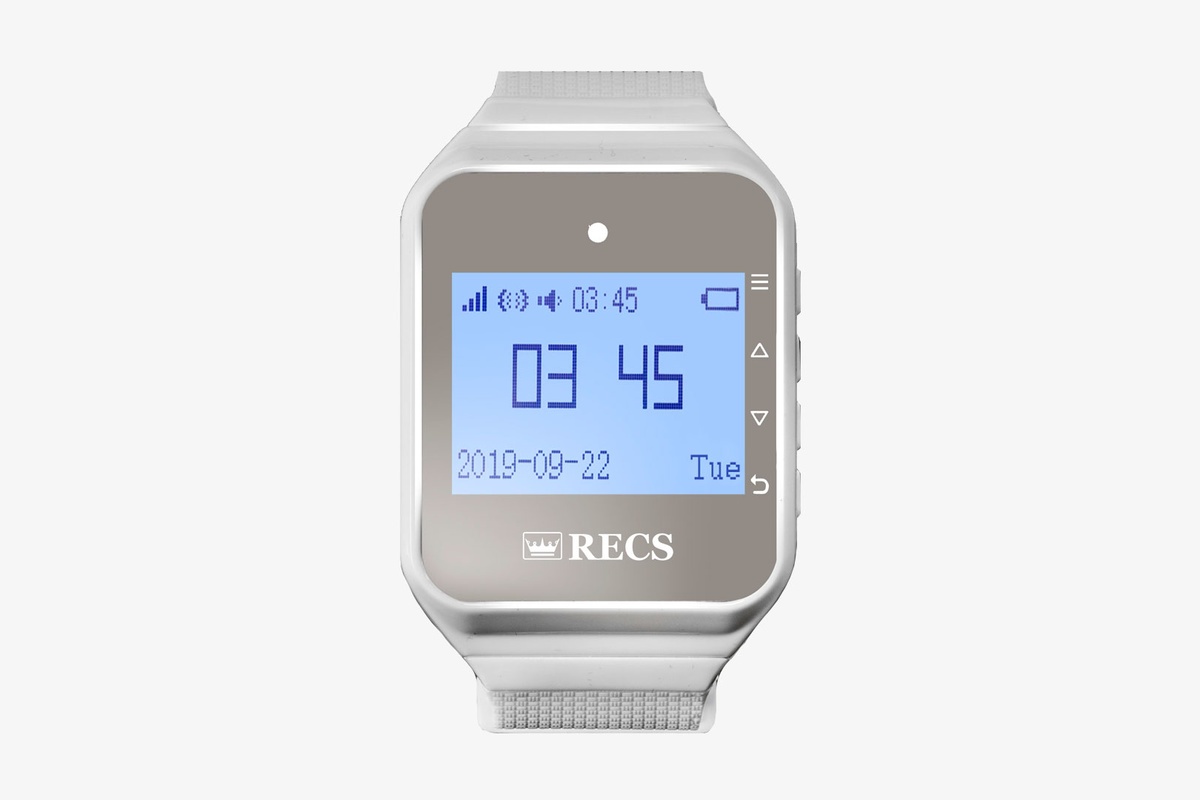

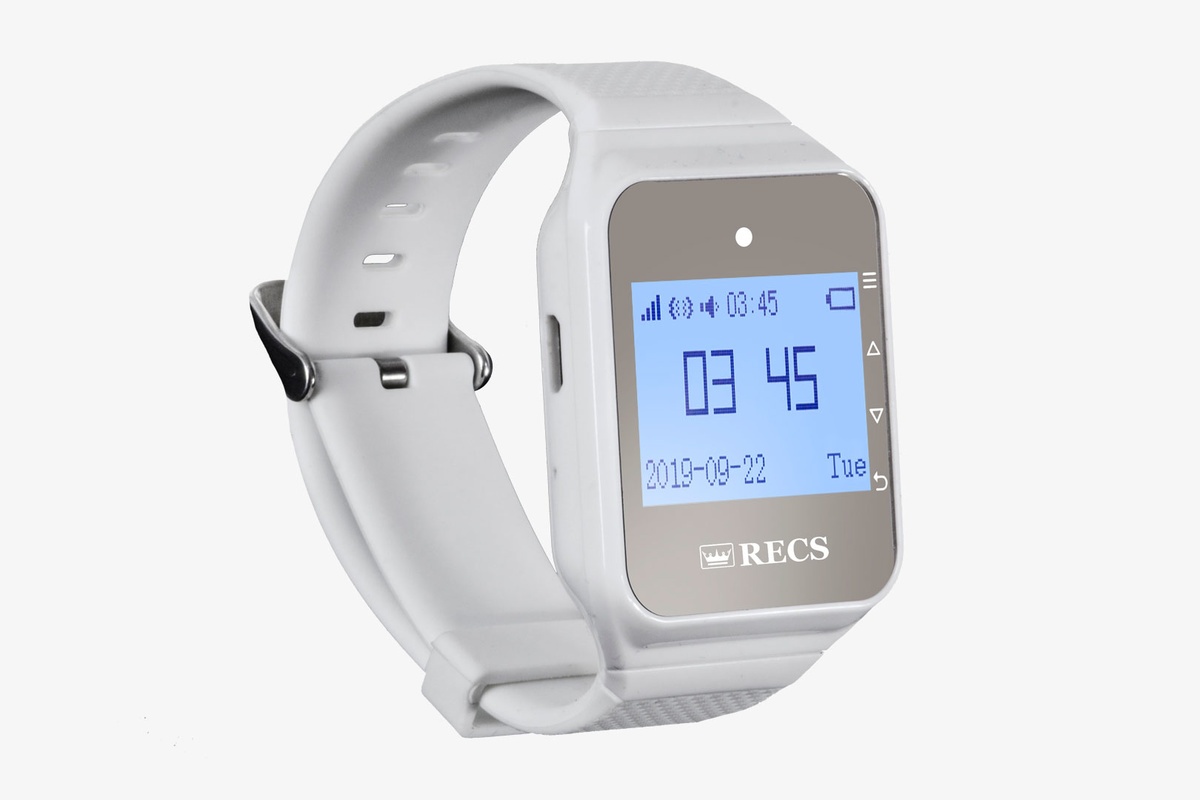

Waiter pager-watches R-02 White is the most popular gadget for a waiter since its appearance on the market. Pager R-02 for wireless personnel calling systems in a stylish and slim ABS case - plastic with a rubber strap. This pager has an incredible software power and rich functionality that will easily satisfy even the most picky client - a restaurateur or a head of medical institution.

The working principle of the RECS RC-11 + R-300 + R-02 kit is extremely simple. The patient has the call button. It can be placed by the bed or hang around patient's neck on a comfortable strap. The call button body is small and fits your hand comfortably. It's enough to gently touch the blue rubberized button for a call. If needed, the strap can be detached and separated from the button.

The receiver is located at the nurse's post, or next to the service personnel no more than 100 m from the call button. To connect it, you can use a regular outlet. When you press the blue button of the call, it is highlighted from the inside, which signals the presence of power and the signal transmission to the receiver. At this moment, a blue frame lights up on the receiver around the front bell and the melody sounds. There is a selection button to install one of the 52 melodies on the left side of the receiver.

The pager-watches R-02 are for the nurse or other personnel who take care of the sick. The maximum distance of the signal reach is not more than 100 m from the call button. When the patient presses the blue call button, it is highlighted from the inside, which signals the presence of power and the signal transmission to the pager. At this moment, a paging signal appears on the pager with a text explanation of who the signal came from.

You can connect several RC-11, R-300 call buttons to one R-02 pager.

Product specifications

Range Indoor / Outdoor 100/100
Battery life up to 3 years
Body ABS plastic
Frequency 433,92 MHz
Indication LED
Power Button: А23 12V, Receiver: 220V
Protection IP55
