Wireless kit for disabled RC-11 + DoorBell Receiver + R-300

Wireless calling system for disabled RECS RC-11 + DoorBell Receiver + R-300 is a convenient and professional solution for communication between patients and staff. It does not require additional installation expenses, has a high degree of water resistance IP55 and a wide range of operating temperatures from -30 to + 70 ° С, which allows it to work correctly outdoors, in a building, and in rooms with high humidity.

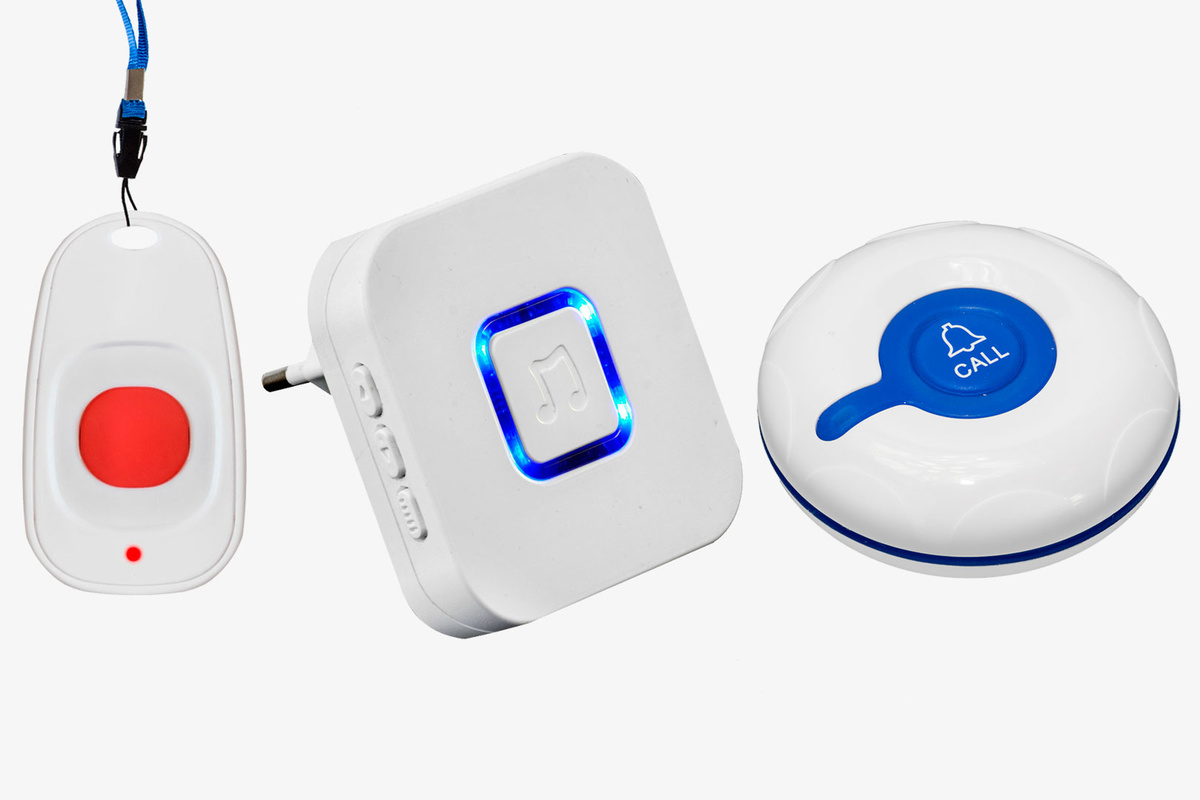

Call system consists of a lightweight rectangular call button on a lace, a compact comfortable receiver with bright blue backlighting, and reliable R-300 buttons for additional patient-personnel communication, which can be installed in several places where the patient stays and programmed in common system kit. The range of the receiver reaches up to 100 meters from the call buttons.

The RC-11 call button is made of special shockproof glossy ABS plastic with internal rubber gasket, sealed electronic button and built-in indicator. It is powered by a single A23 12V battery. It is designed for comfortable, long wearing on the neck of the patient, with the help of a lace with a plastic latch. The button can also be mounted on a horizontal or vertical surface, next to the patient's bed.

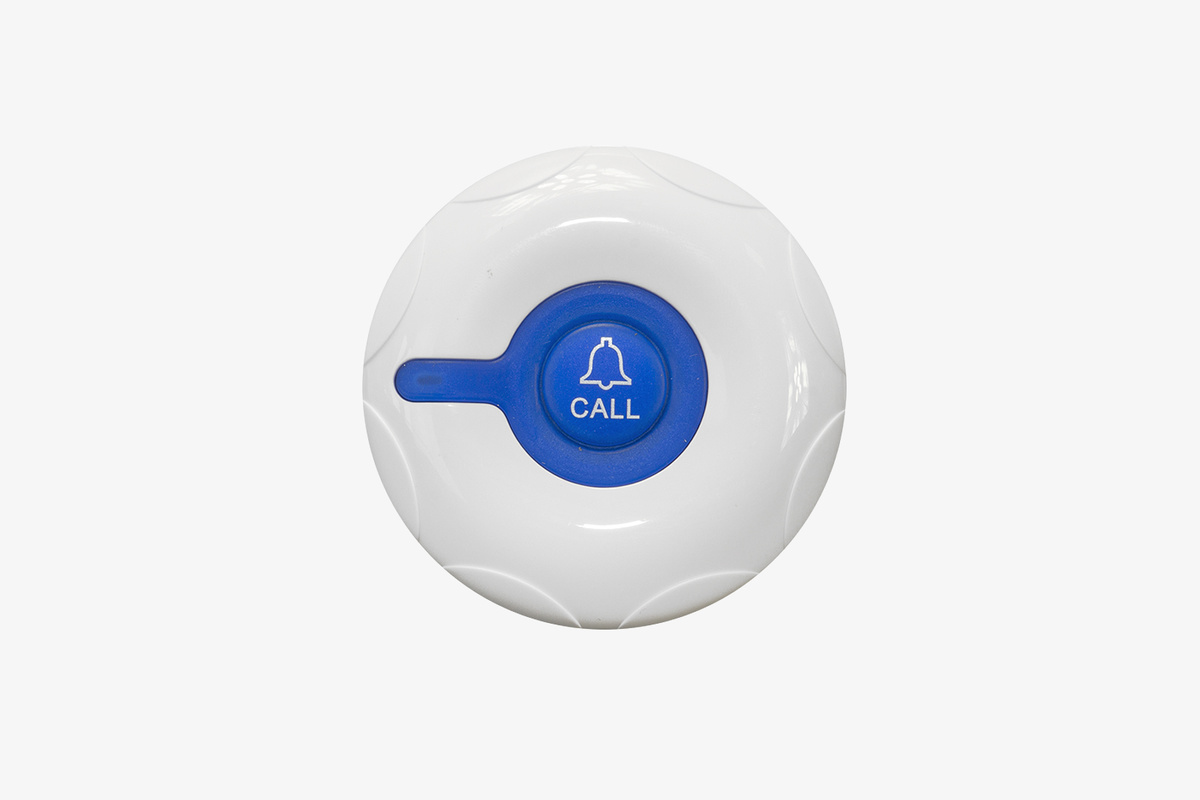

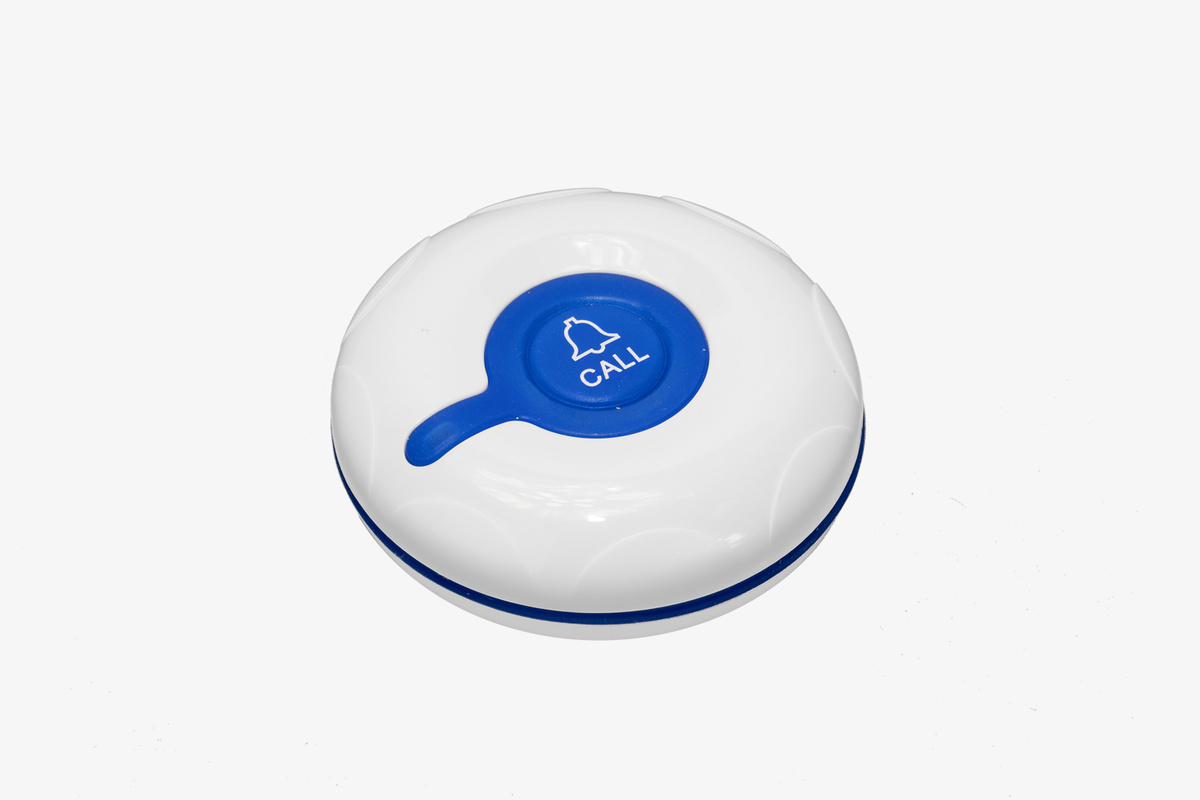

The RECS R-300 button is pleasant to the touch and easy to use, especially for sedentary and weak patients. A button with a radius of 60 mm and a height of 20 mm is easy to take into the hand, and the soft non-slip surface of the button makes it easy to press it even to a person with a lack of coordination. A bright red or blue button on a white background of the case is clearly visible to visually impaired people.

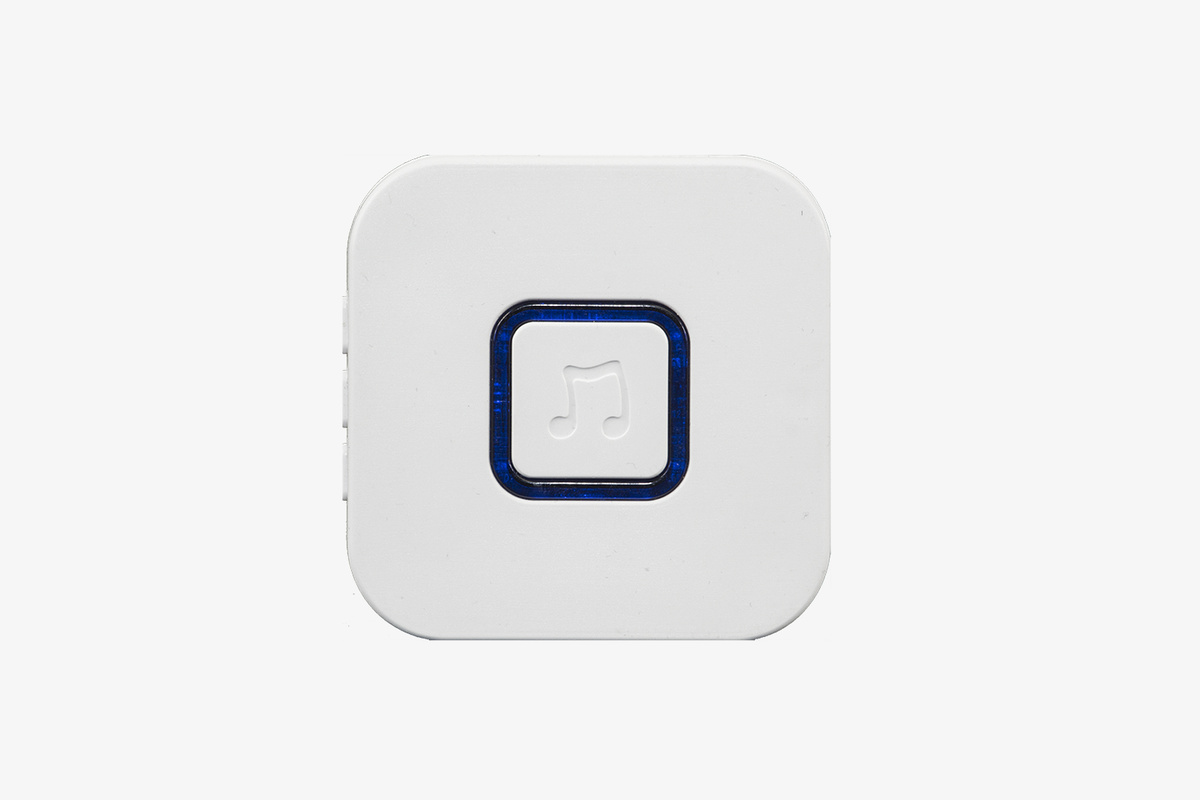

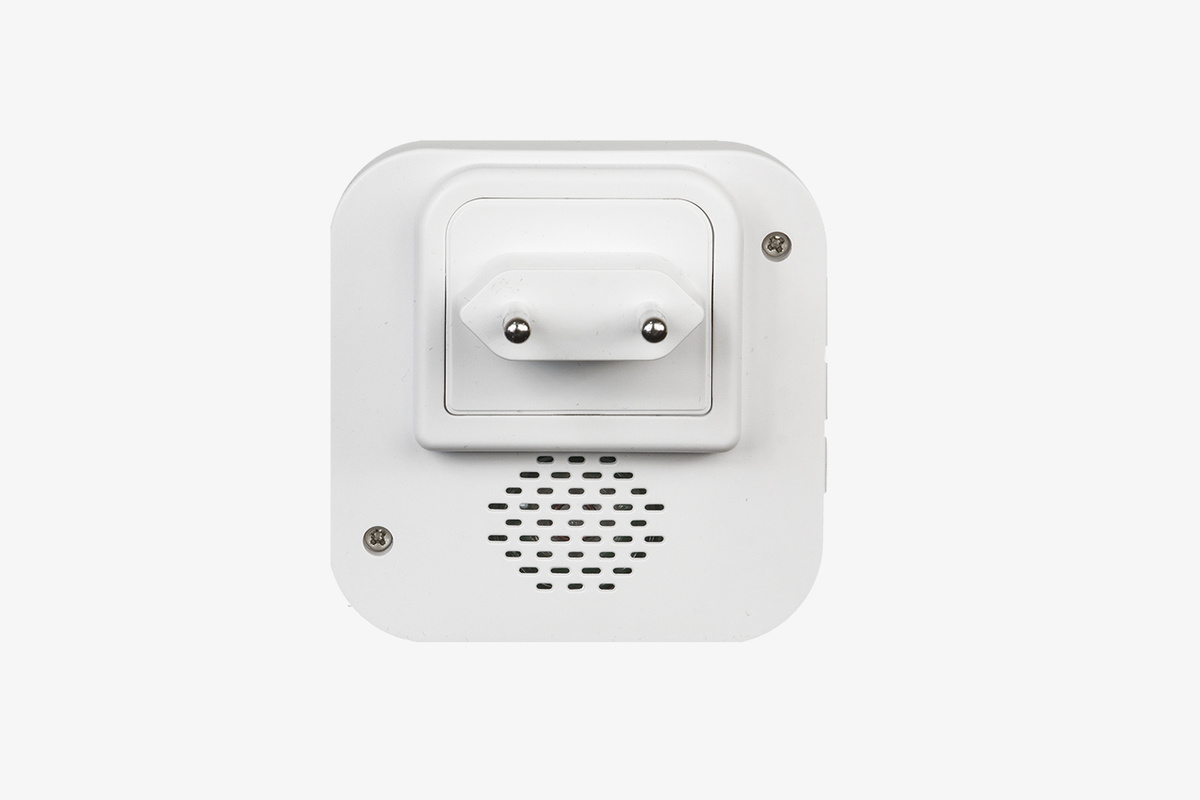

The original receiver with blue backlight connects to a standard wall outlet in the staff room or in any other convenient place so that the medical staff can always hear the call signal. Ring tones are melodies. You can set a unique signal from 52 offered melodies. The volume of the signal is adjustable: 4 levels from 0 to 110 dB.

The kit is very easy to install and configure, does not require any additional wires to connect. Compact, stylish and reliable. The electronic circuit of the device was developed by specialists of the RECS USA laboratory, based on an ATMEL microcontroller with a frequency synthesizer of 433, 92 MHz and an output signal power of 10 mW. The receiver’s unique music processor contains 52 sound bites to sound the selected call signal.

The working principle of the wireless kit for disabled

The patient has the call button. It can be placed by the bed or hang around patient's neck on a comfortable strap. The call button body is small and fits your hand comfortably. It's enough to gently touch the blue rubberized button for a call. If needed, the strap can be detached and separated from the button.The R-300 buttons are located in rooms where patients may be located and where they may need additional assistance. They are also mounted on double-sided tape, they are not afraid of water and dust.

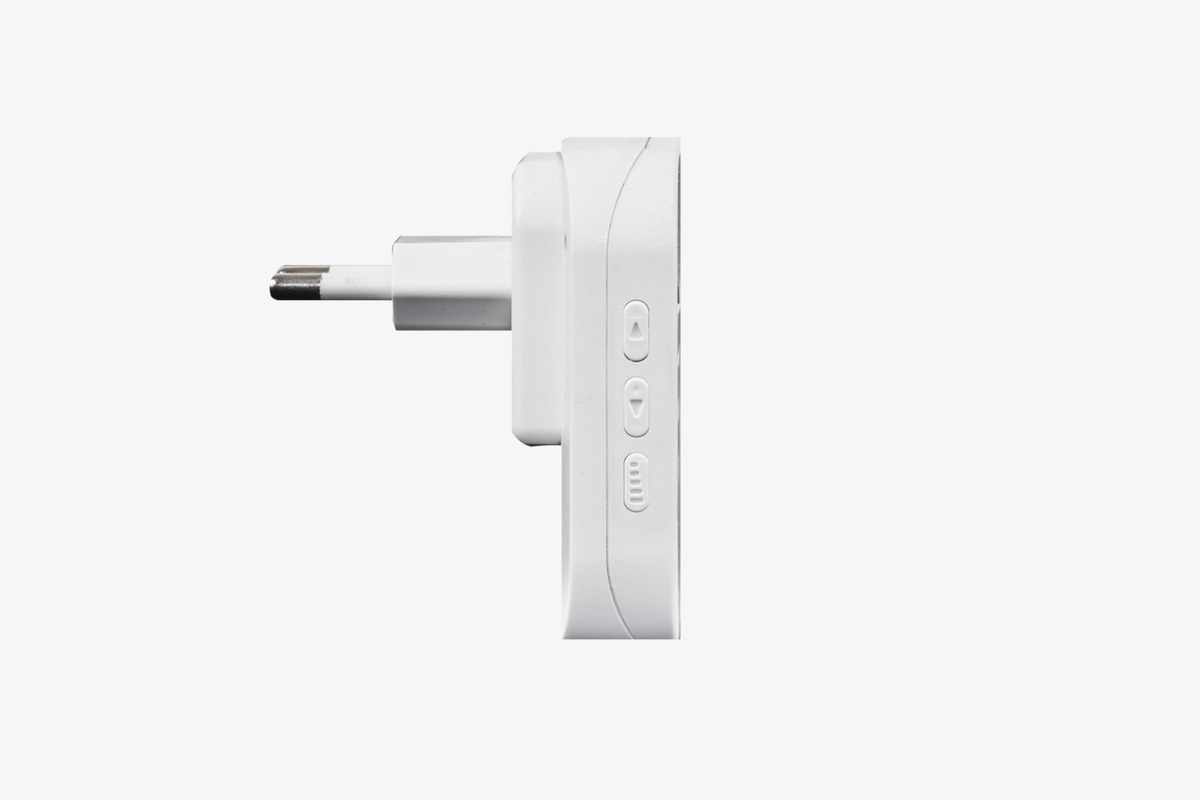

The receiver is located indoors at a distance of not more than 100 m from the call button. To connect it, you can use an ordinary power outlet. When you press the blue call button, it is highlighted from the inside, which signals the presence of power and the signal transmission to the receiver. At this moment, a blue frame lights up on the receiver around the front bell and the melody sounds. There is a selection button to install one of the 52 melodies on the left side of the receiver. The signal volume is regulated by a separate button, one of 4 levels is set. To expand the system you can connect several call buttons RC-11 and R-300 to a single receiver, depending on the requirements in each case.
