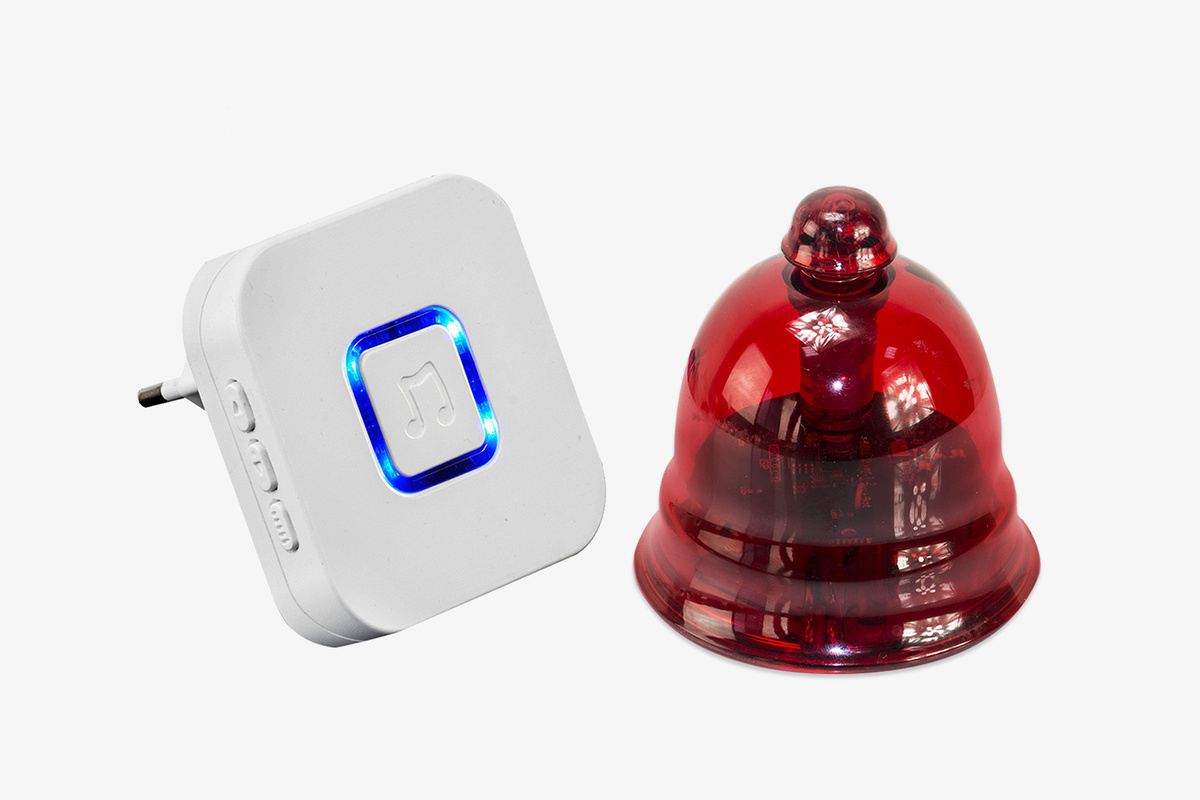

Call kit R-100 + DoorBell Receiver

The RECS R-100 + DoorBell Receiver wireless personnel calling system is a convenient and professional solution for communication between the customer and the service personnel. It does not require additional installation expenses, is easy to install, configure and use.

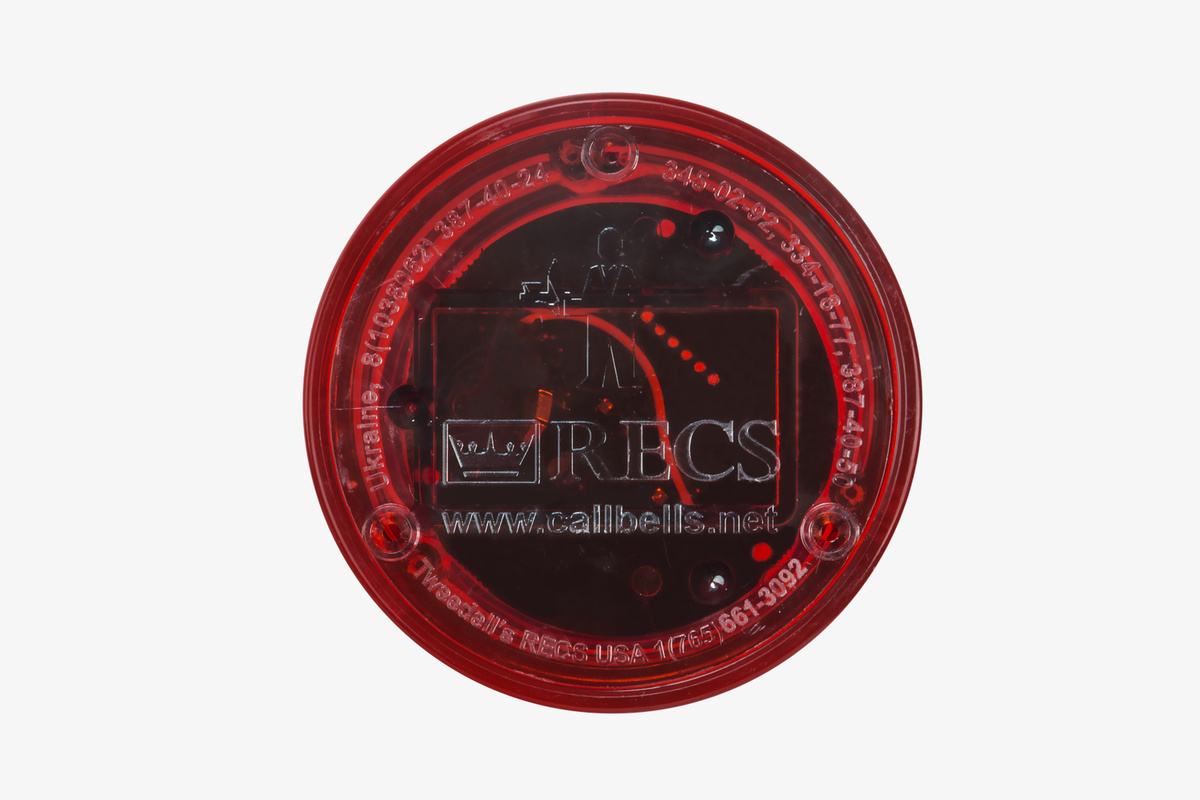

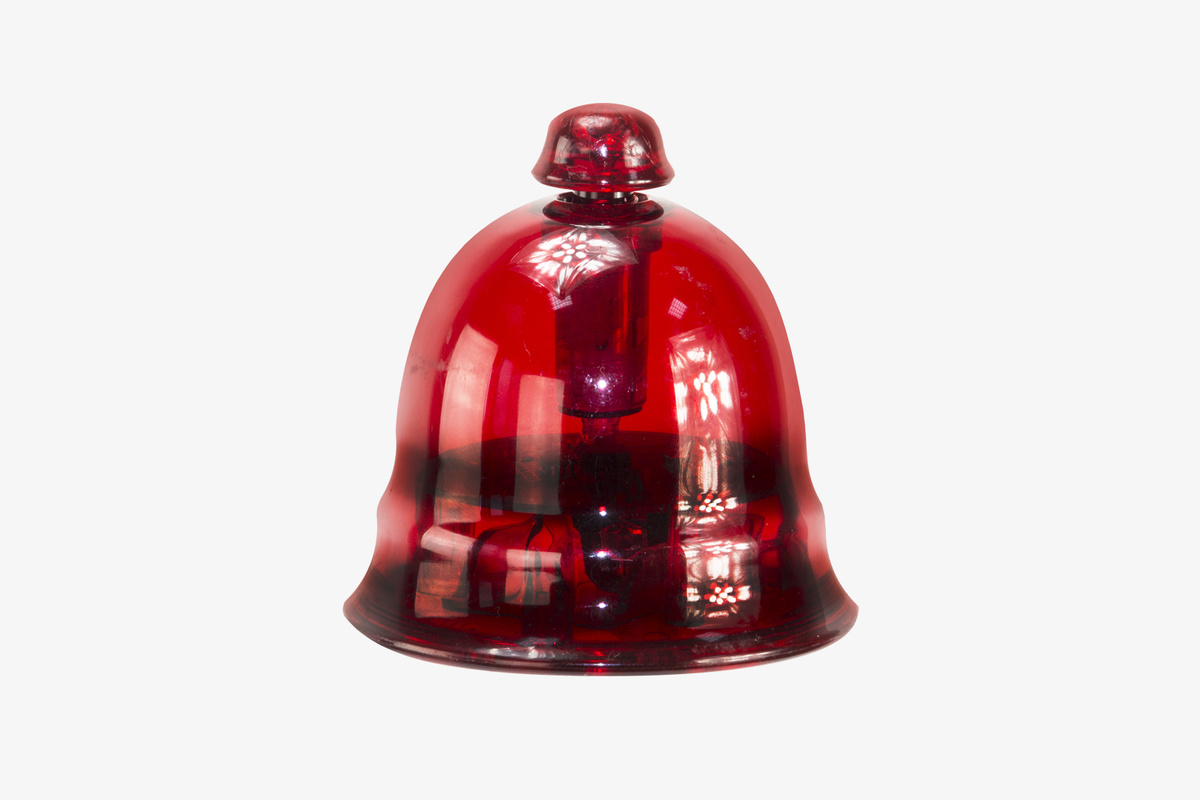

The R-100 button in the shape of a bell is quite large - 88 mm high and 85 mm in diameter, made of transparent durable red colored plastic. R-100 wireless waiter call button is a complicated electronic device. There is a radio electronic card with a special microprocessor inside and a digital frequency synthesizer, which provide the function of radio transmission. The call button is located on the dome of the bell. When it is pressed inside the bell, 6 bright LEDs turn on, creating the illusion of a running light, and the signal immediately goes to the waiter's pager-watch and/or to the call receiver. After receiving a message on his pager-watches, the waiter sees from which table the call was received, and then hurries to the visitors. These buttons have a long range. So, indoors the button has a working distance of up to 100 m. If it is necessary to expand the coverage area of ​​the signal, a repeater is installed, thanks to which the radius of action is increased respectively up to 300 m and 800 m.

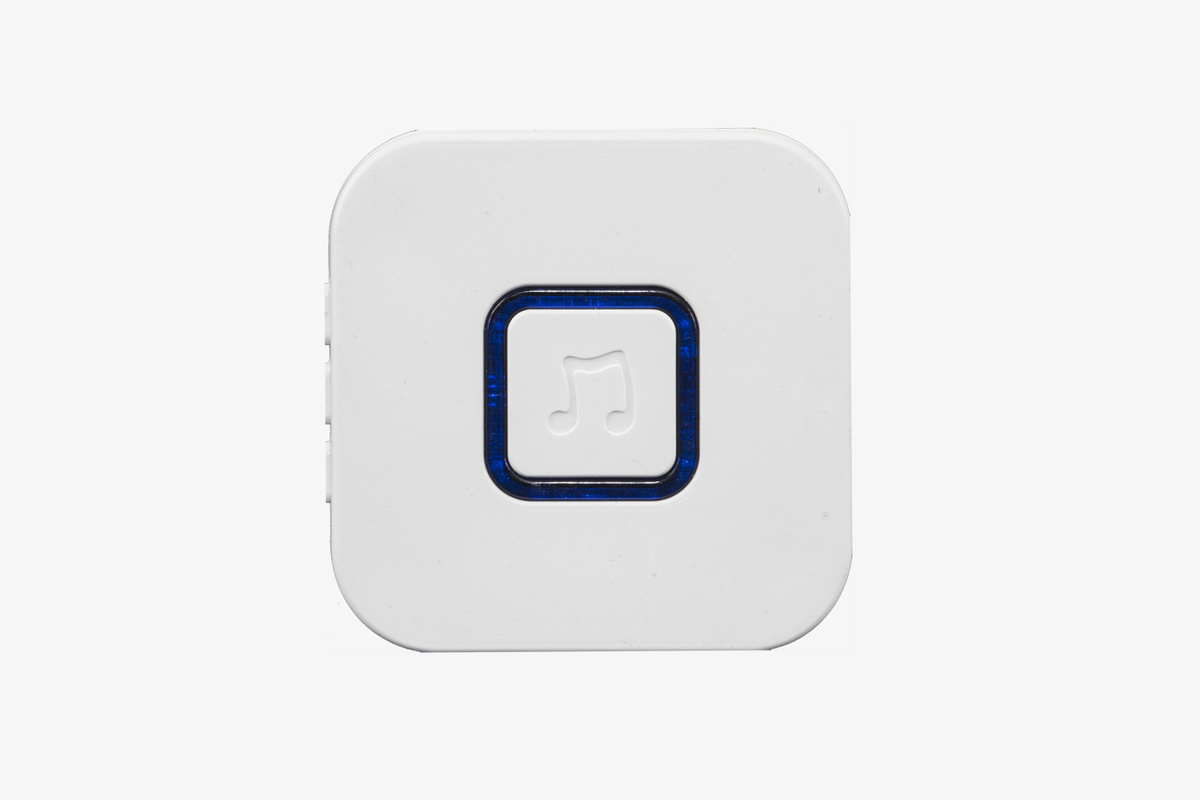

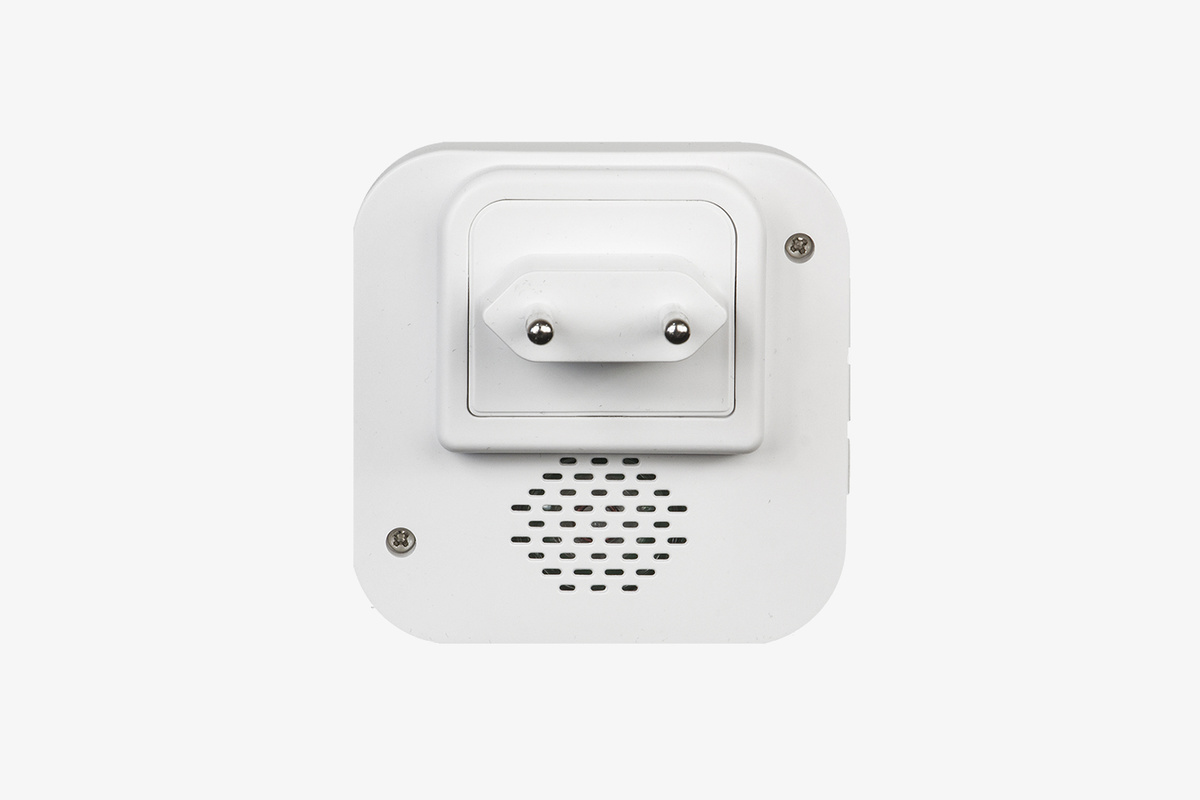

The original DoorBell receiver with blue backlight connects to a standard wall outlet in the staff area or in any other convenient place so that the staff can always hear the ring signal. Ring tones are melodies. You can set a unique signal from 52 offered melodies. The volume of the signal is adjustable: 4 levels from 0 to 110 dB.

RECS R-100 + DoorBell Receiver: how it works

The electronic circuit was developed by the RECS laboratory based on the American ATMEL microcontroller with a 433.92 MHz frequency synthesizer and a power of 10 mW. The receiver’s unique music processor contains 52 sound bites to sound the selected call signal.

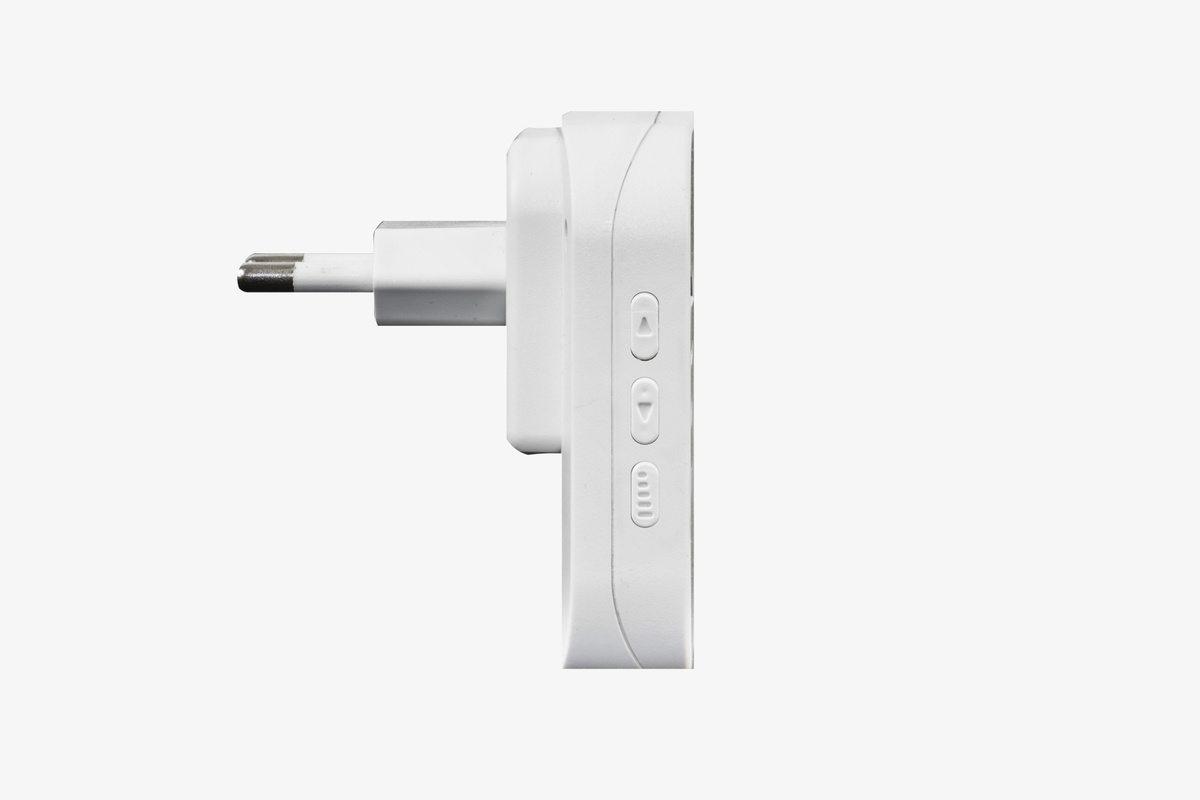

The receiver is located next to the service personnel not furher than 100 m from the call button. To connect it, you can use a regular outlet. When you press the call button, it is highlighted from the inside, which signals the presence of power and the signal transmission to the receiver. At this moment, a blue frame lights up on the receiver around the front bell and the melody sounds. There is a selection button to install one of the 52 melodies on the left side of the receiver. The signal volume is regulated by a separate button, one of 4 levels is set. You can connect multiple call buttons to one receiver.

The RECS R-100 + DoorBell Receiver set is an excellent solution for organizing a waiter call system at an affordable price. It is stylish, compact, functional and reliable, and also very easy to install and configure. It does not require any additional wires to connect.
