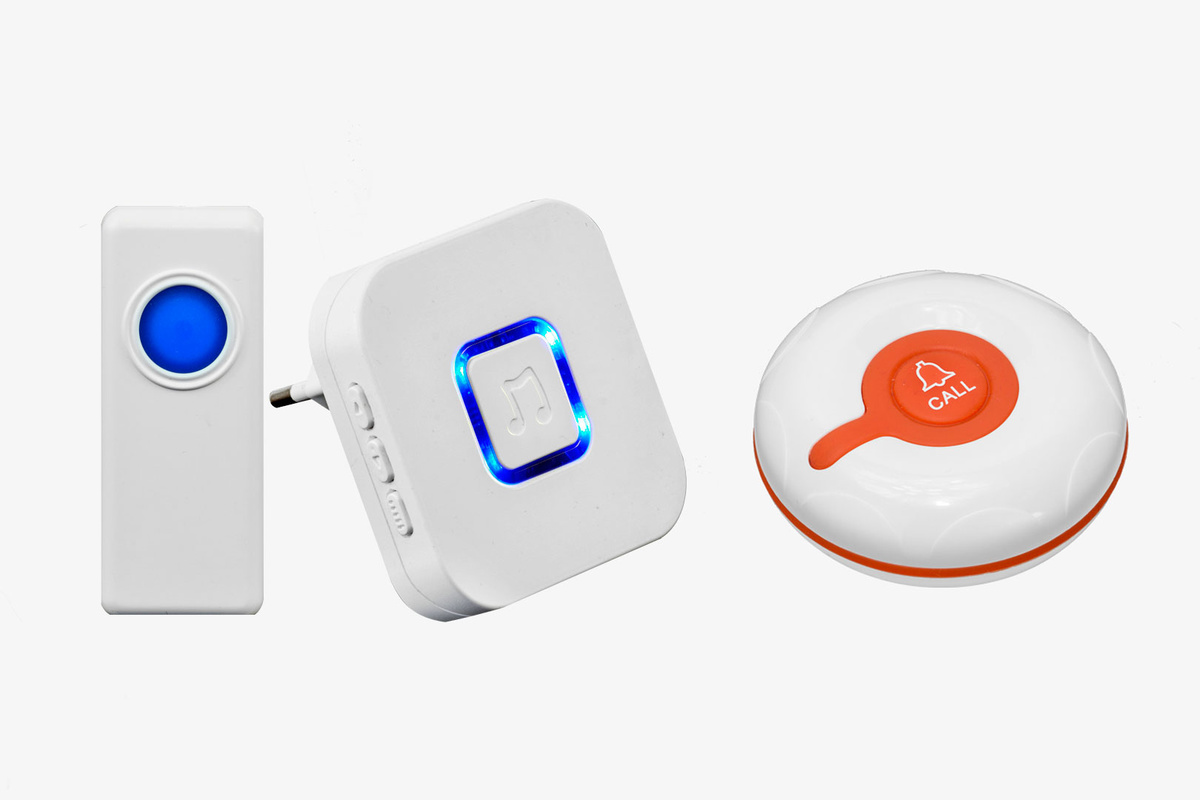

Wireless doorbell kit Doorbell + R300

Wireless RECS Doorbell Kit + R-300 is a convenient and fast solution for communication between a house and a front door or wicket. Thanks to the wireless doorbell-receiver communication, the kit does not require additional installation expenses.

The doorbell has a high degree of water resistance and a wide range of operating temperatures from -30 to + 70 ° С, which allows it to work properly outside.

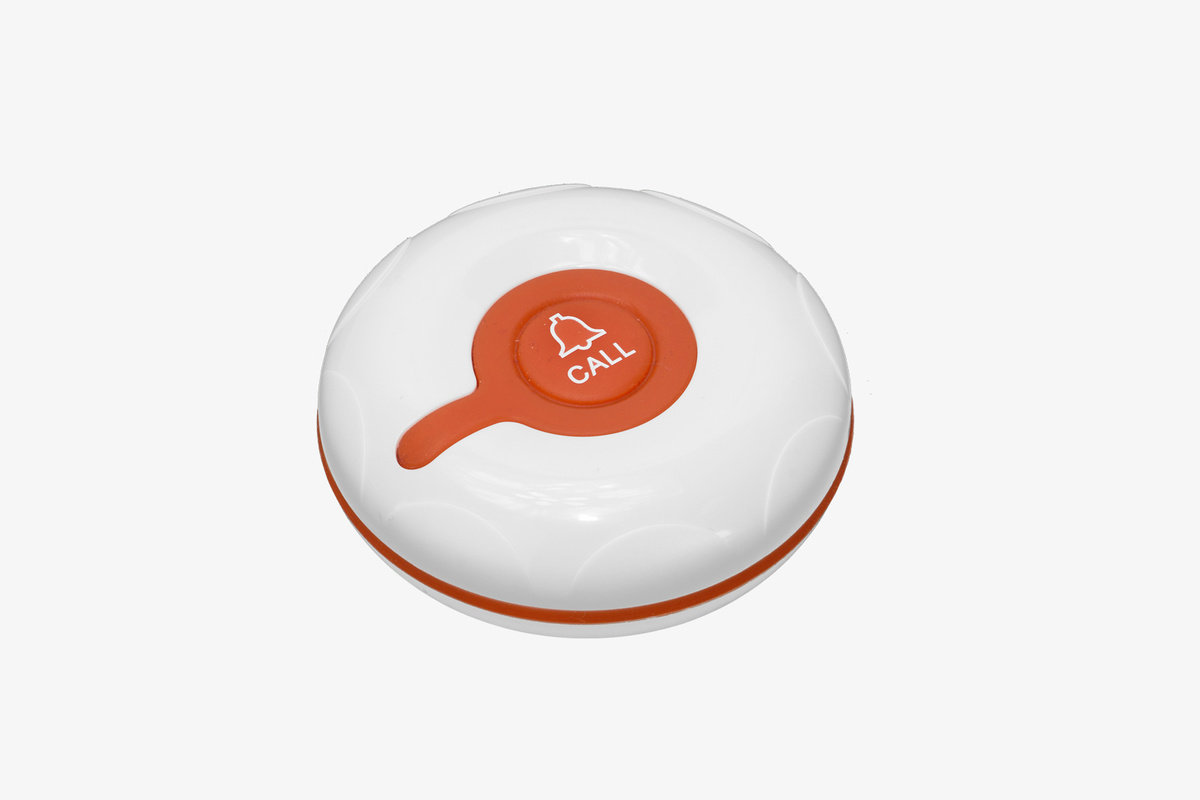

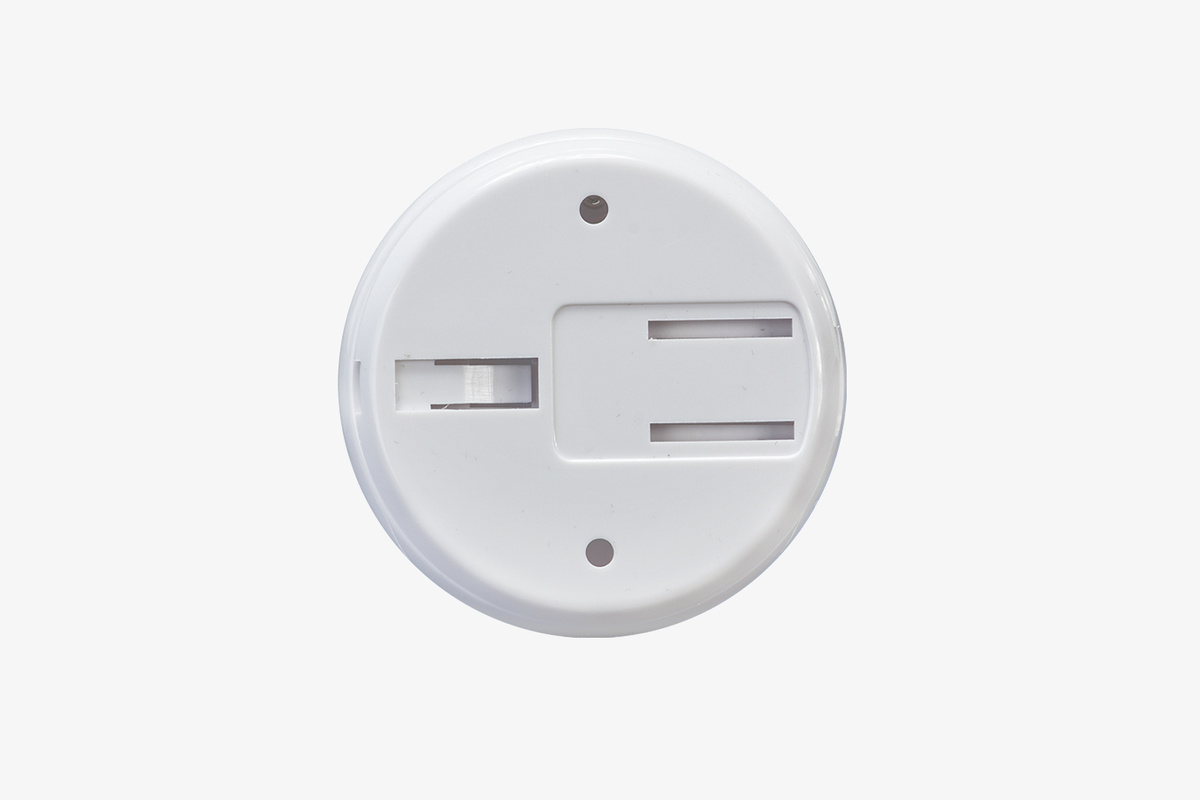

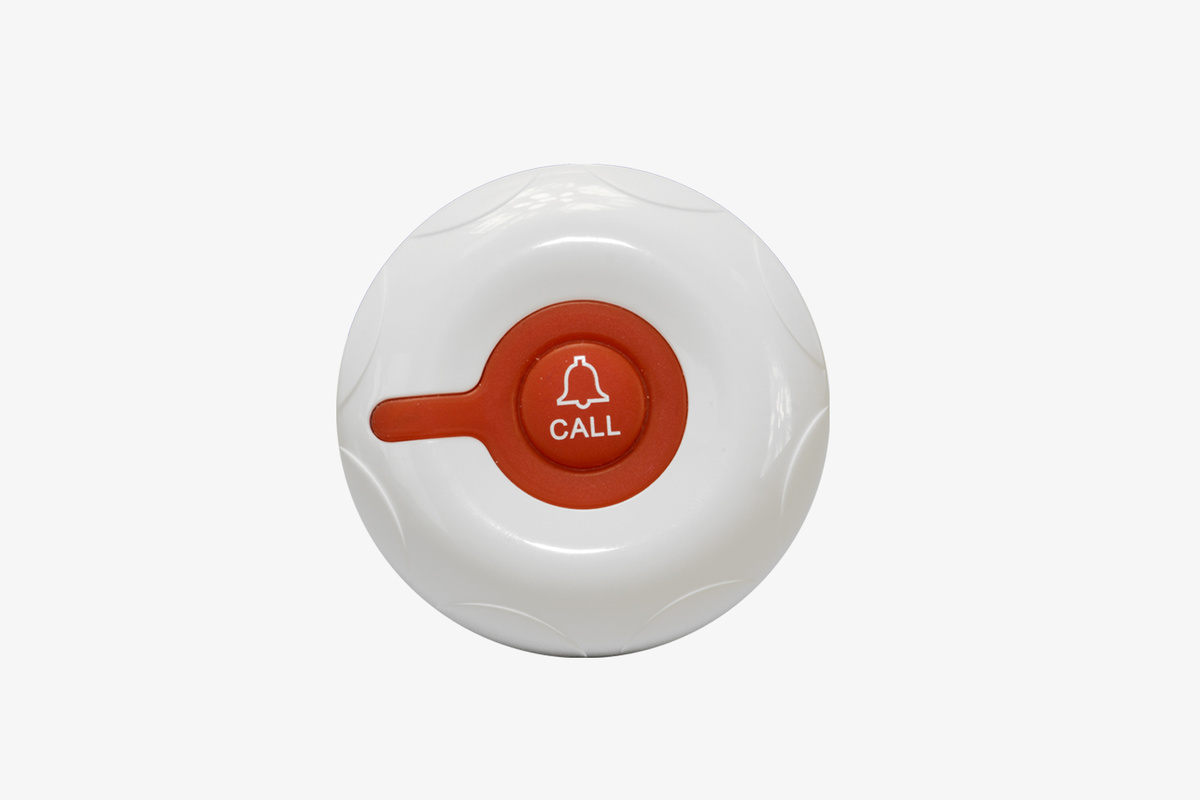

The RECS doorbell kit consists of an all-weather doorbell button and receiver. The doorbell is installed outside the front door or on the gate with 2 screws or double-sided tape. The compact R-300 round buttons can be used as additional call buttons or instead of a button from the kit - it all depends on your needs and taste preferences. The receiver is connected to the power outlet indoors. Mounting kit is included. The range of the receiver reaches up to 100 meters from the call button.

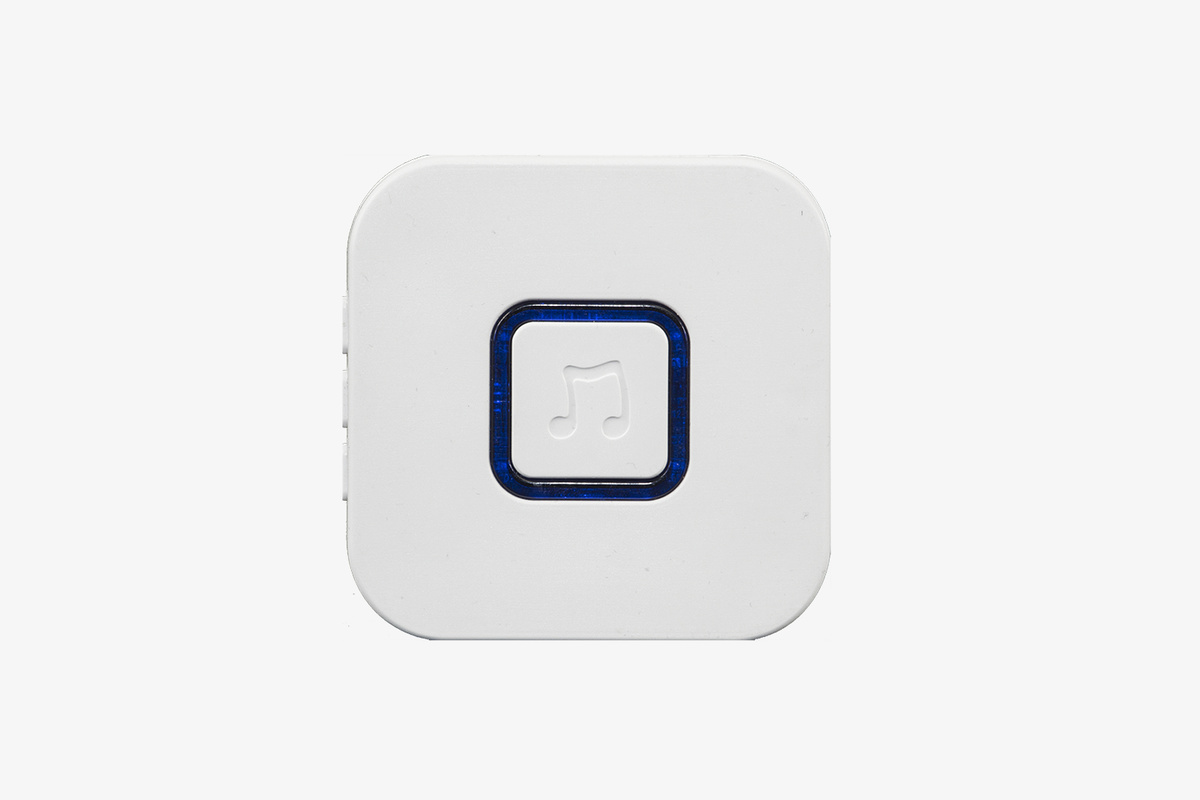

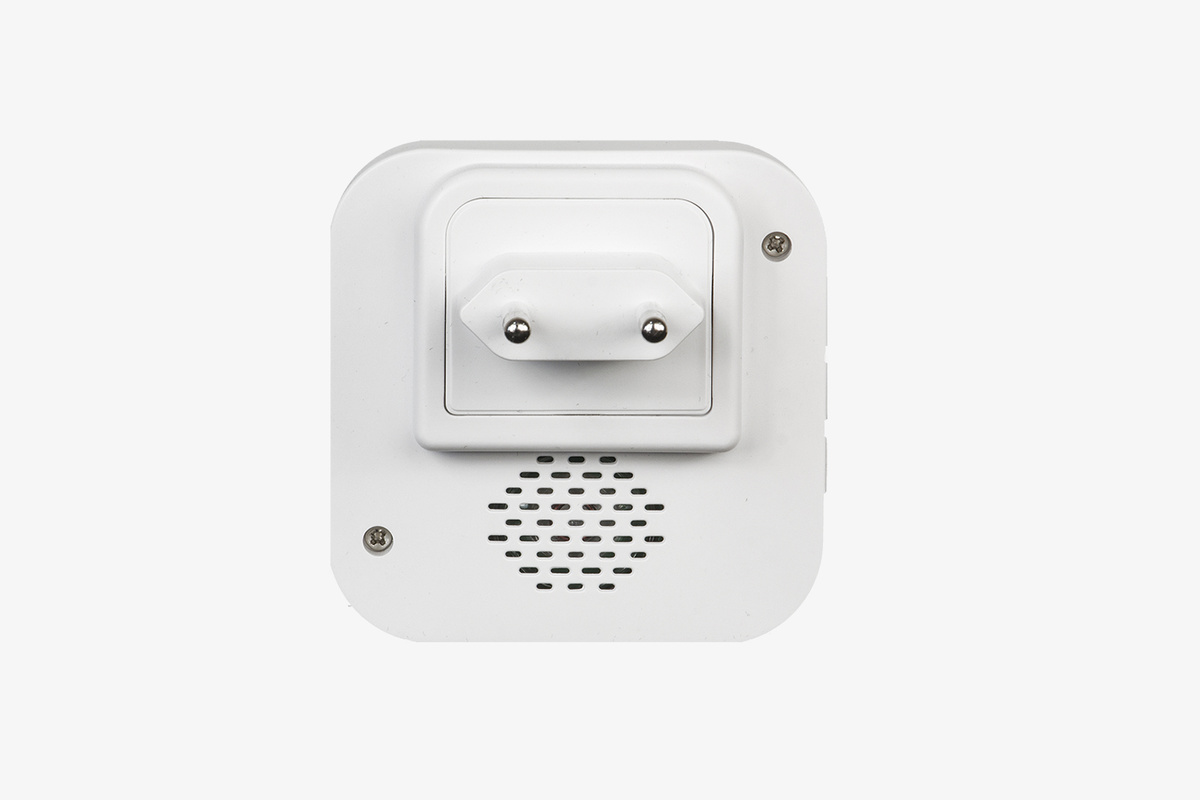

All-weather call button is completely sealed, it works on a single A23 12V battery. The original receiver with a spectacular blue backlight is connected and fixed in a standard power outlet.

Up to 99 different RECS call buttons as well as other useful devices can be connected to one receiver:

• Wireless motion sensor;
• Wireless door opener-reed sensor;
• Flood sensor;
• Fire detector.

You can set a unique signal to your liking by selecting one of the 52 suggested melodies. The volume of the signal is adjustable: 4 levels of volume from 0 to 110 dB.

In addition to the main purpose, this kit can be used in the following places: rooms with a high level of humidity, to call the staff at the reception in a hotel, shop, cafe, etc.

The kit is very easy to install and configure, it does not require additional wires to connect. Compact, stylish and reliable.

The electronic circuit of the device was developed by specialists of the USA RECS laboratory, based on an ATMEL microcontroller with a frequency synthesizer of 433, 92 MHz and an output signal power of 10 mW. The receiver’s unique processor contains 52 music and sound bites to sound the selected call signal. The principle of the doorbell for the doorbell street RECS is extremely simple. The call button is installed near the entrance door or at the wicket. The receiver is located indoors at a distance of not more than 100 m from the call button. To connect it, you can use an ordinary power outlet.

When you press the blue call button, it is highlighted from the inside, and the signal is transmitted to receiver. At this moment, a blue frame lights up on the receiver around the front bell and the melody sounds.

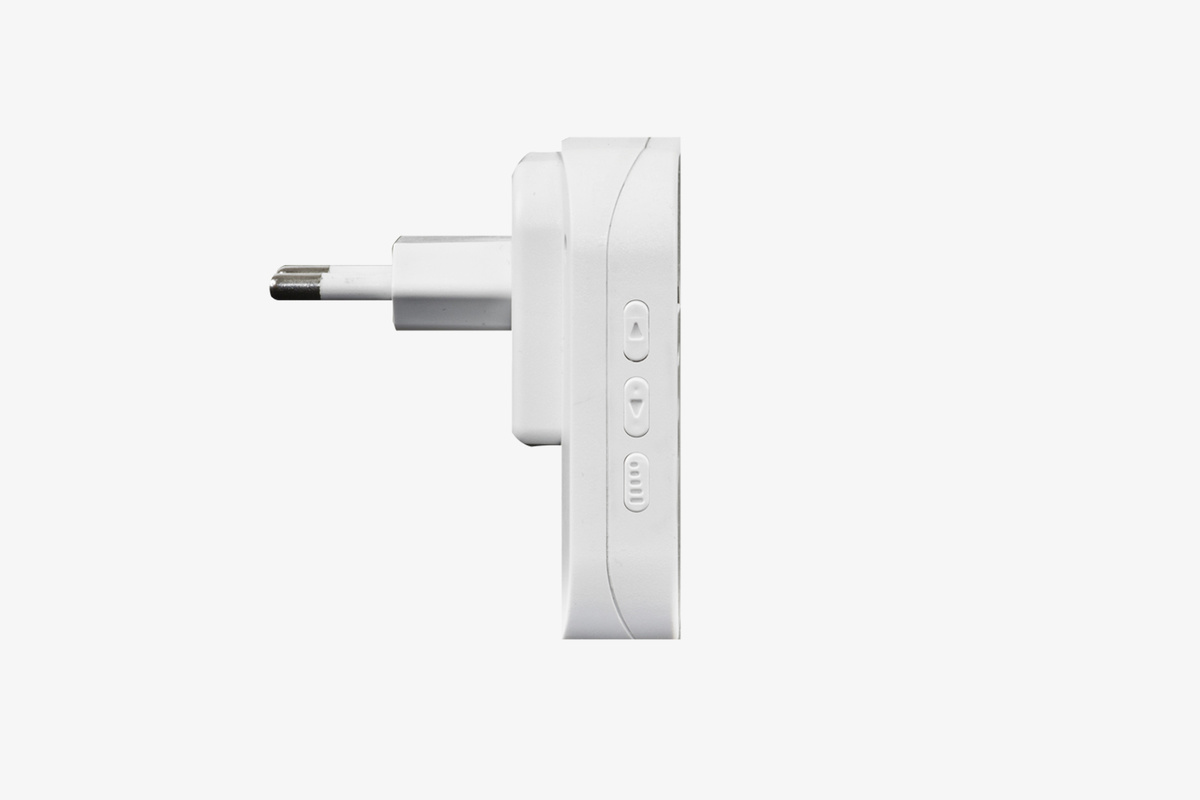

There is a selection button to install one of the 52 melodies on the left side of the receiver. The signal volume is regulated by a separate button.
